Part #:
2013162
Description:

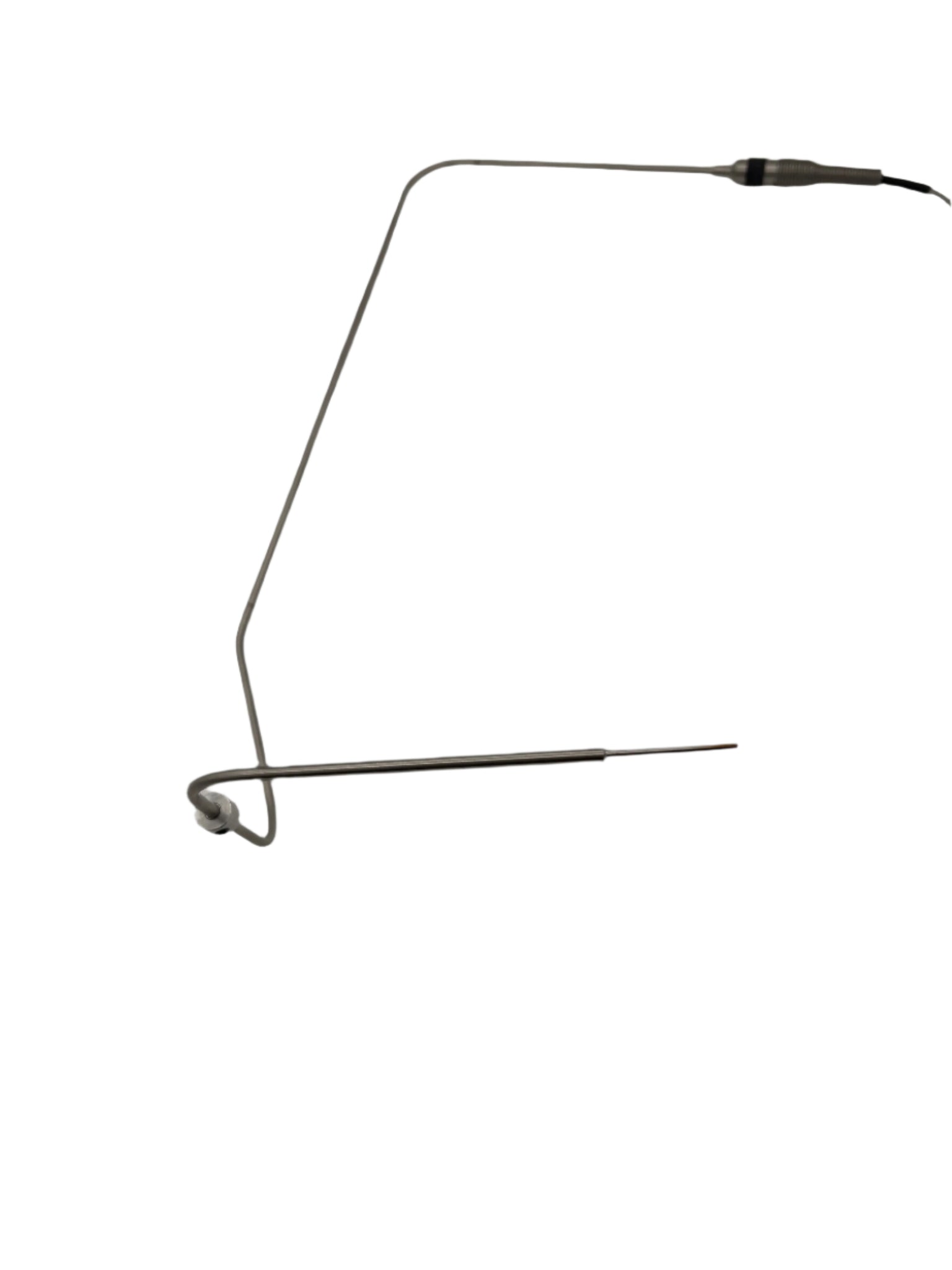

S70A, B and CMOD Bean Thermocouple, Un-grounded with Yellow Spade Connector
Contents:

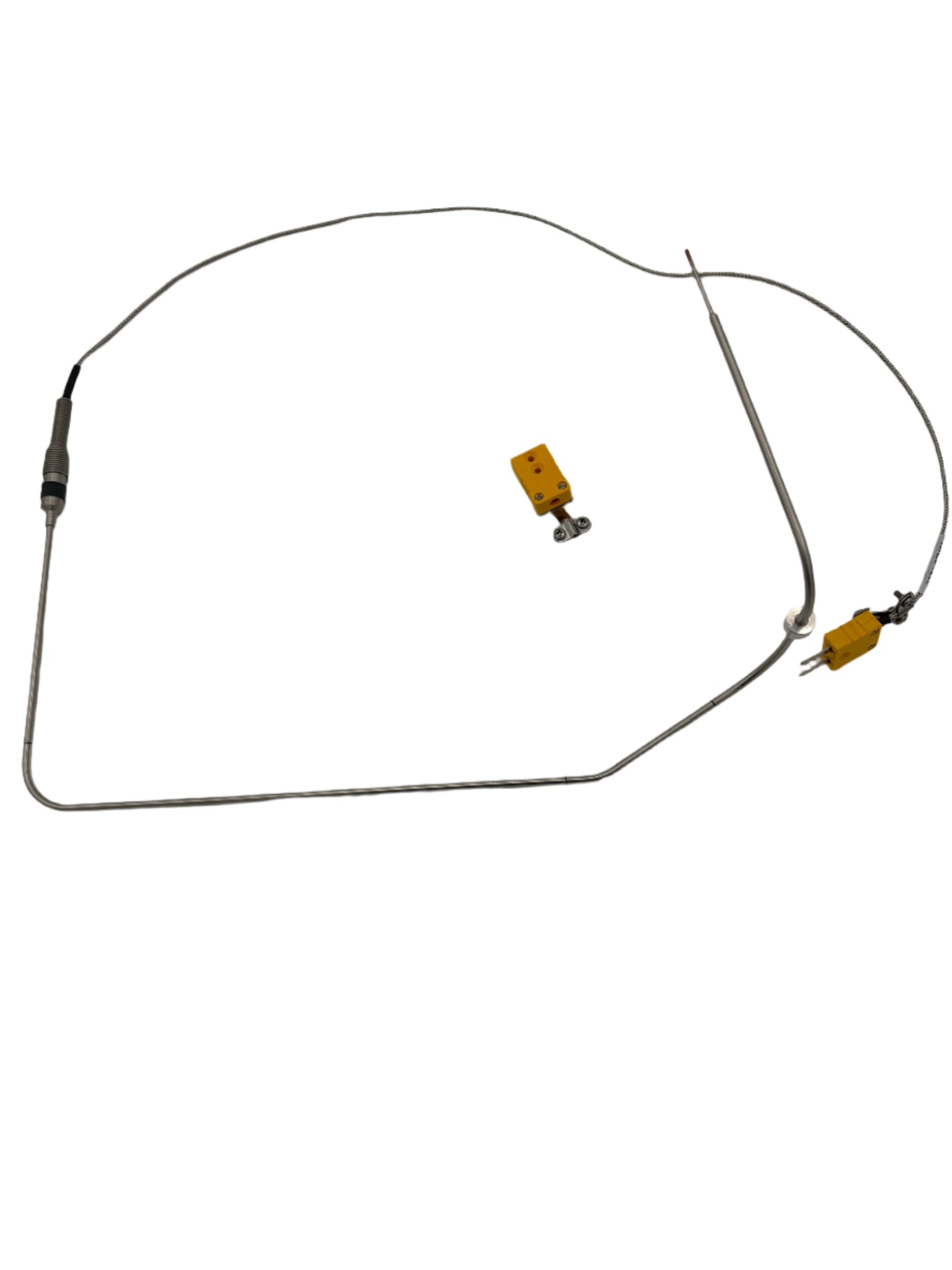

1 S70 Bean Temp Thermocouple with yellow Spade Connector

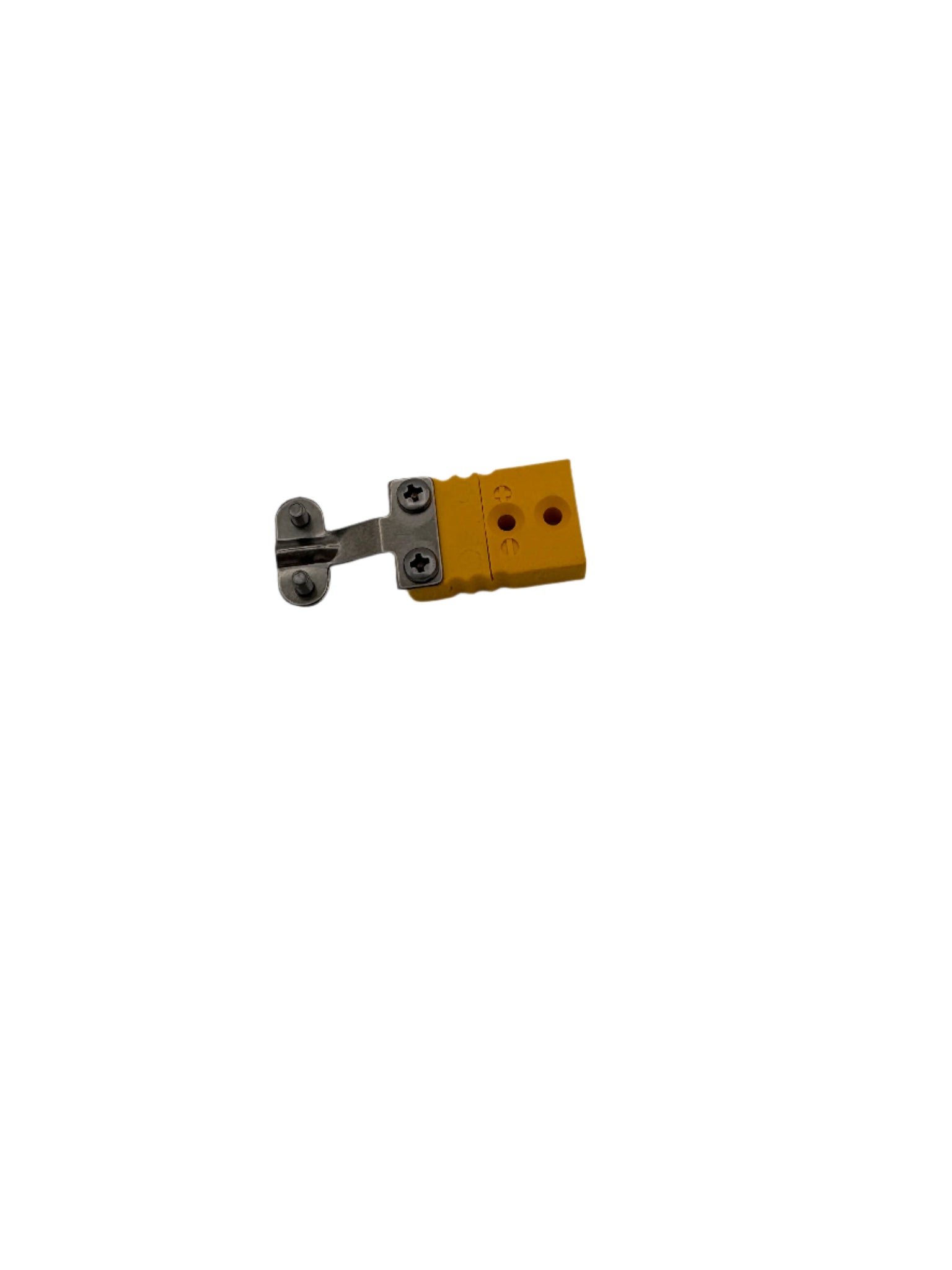

1 Female Spade Connector
Used On / Where is it Located:
S70 Peregrine A, B, and CMOD roasters
The bean thermocouple is located in the Discharge Door
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage. Symptoms indicating replacement needed include damage resulting from improper removal or usage or inaccurate bean temperature readings.
A damaged thermocouple typically shows extreme temperature readings or a zero temperature. Improper positioning of the bean thermocouple can influence bean temperature readings without being damaged. Contact Loring support for instructions regarding the proper positioning of the bean thermocouple.
NOTE:
If the thermocouple being replaced is a non-containerized style, the connector upgrade kit (part number: 1010025) wiring must also be purchased to upgrade the roaster.
If the thermocouple being replaced has the M12 style connector, the kit includes a yellow spade connector to convert the M12 style harness to work with this stile thermocouple.
