Part #:
1003773
Contents:

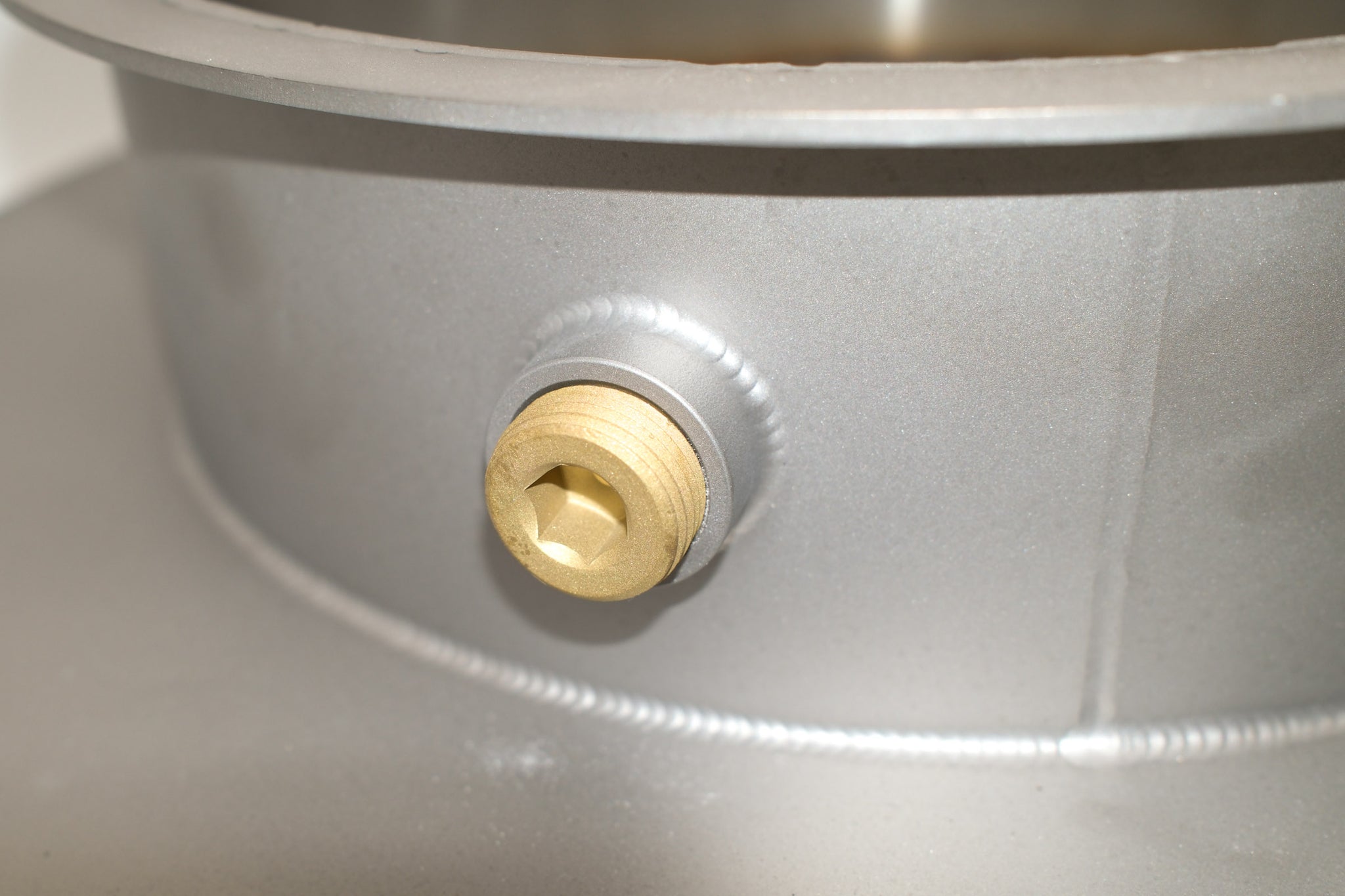

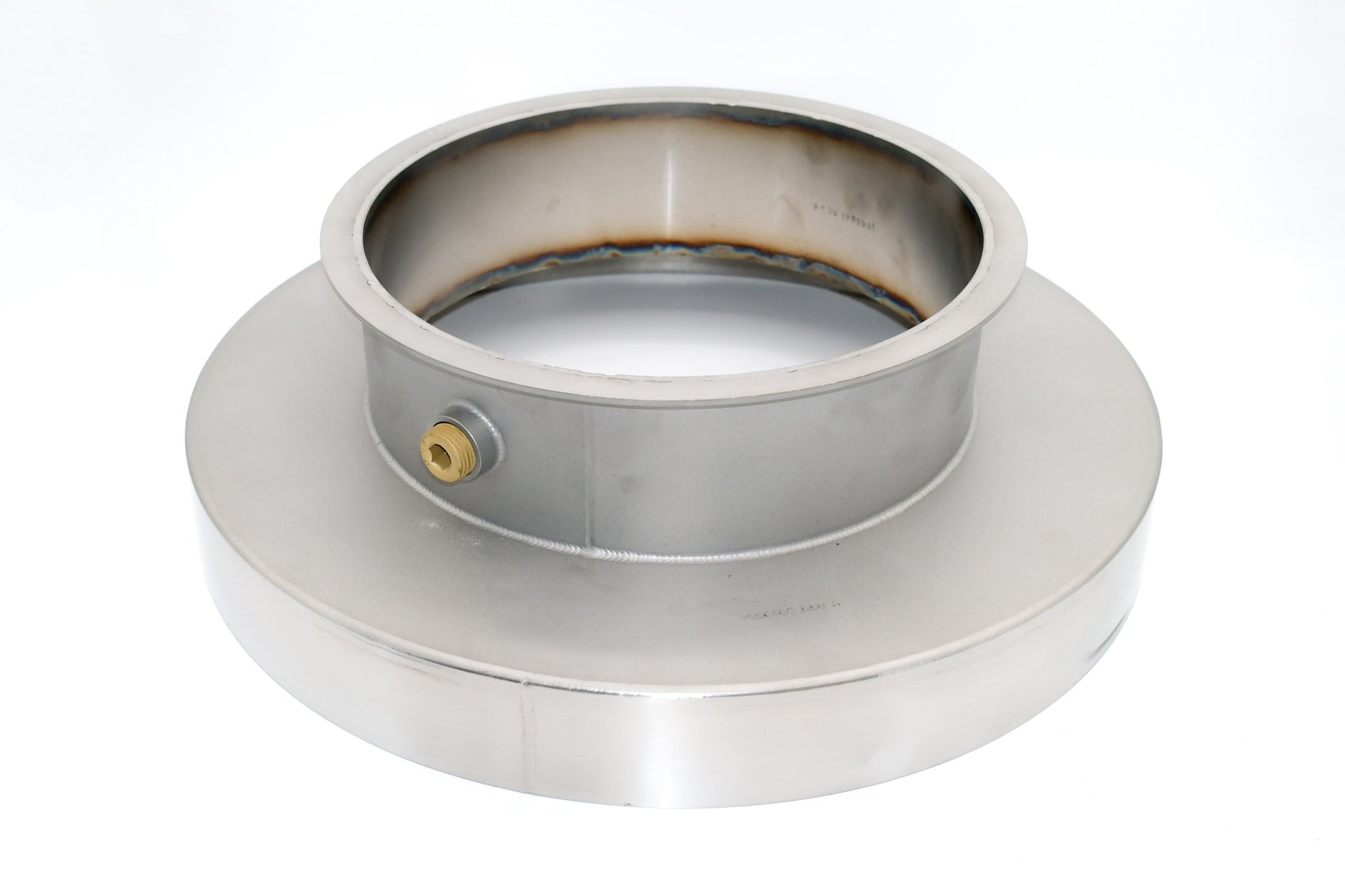

1 S70A/B/C Stack Hat with Flange and Test Port
Used On / Where is it Located:
S70A/B/C mod Peregrine
Top of Cyclone to Hot Exhaust Stack connection
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage. Symptoms indicating replacement needed include damage resulting from improper stack termination.
Note: The Stack Hat is designed to be used as slip fitting to the top of the Cyclone. It is not designed to support the weight of the exhaust stacks. The flange on the stack hat is compatible with a V-Band connection but can be modified as needed.
