Part #:
1009267
Contents:

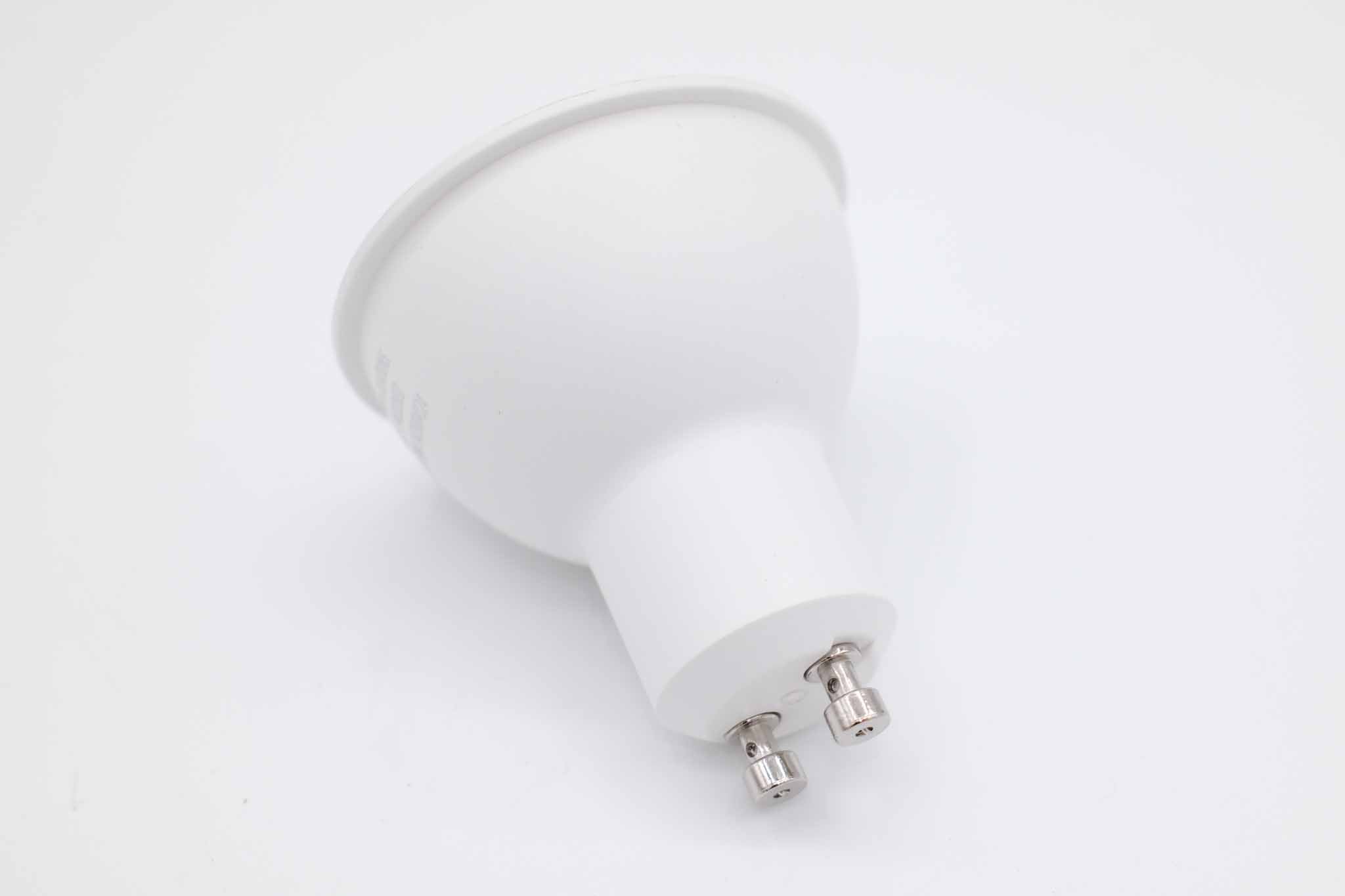

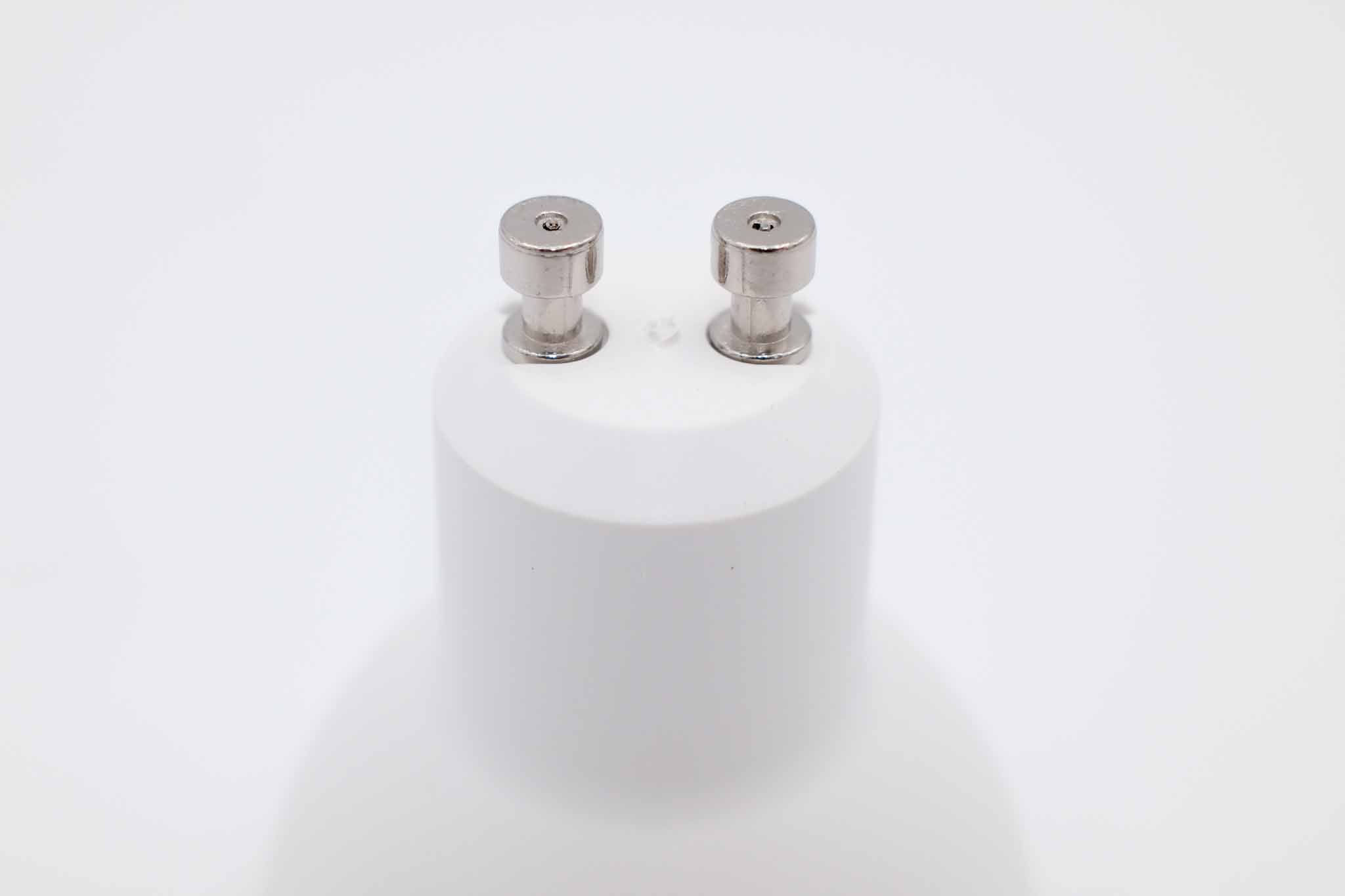

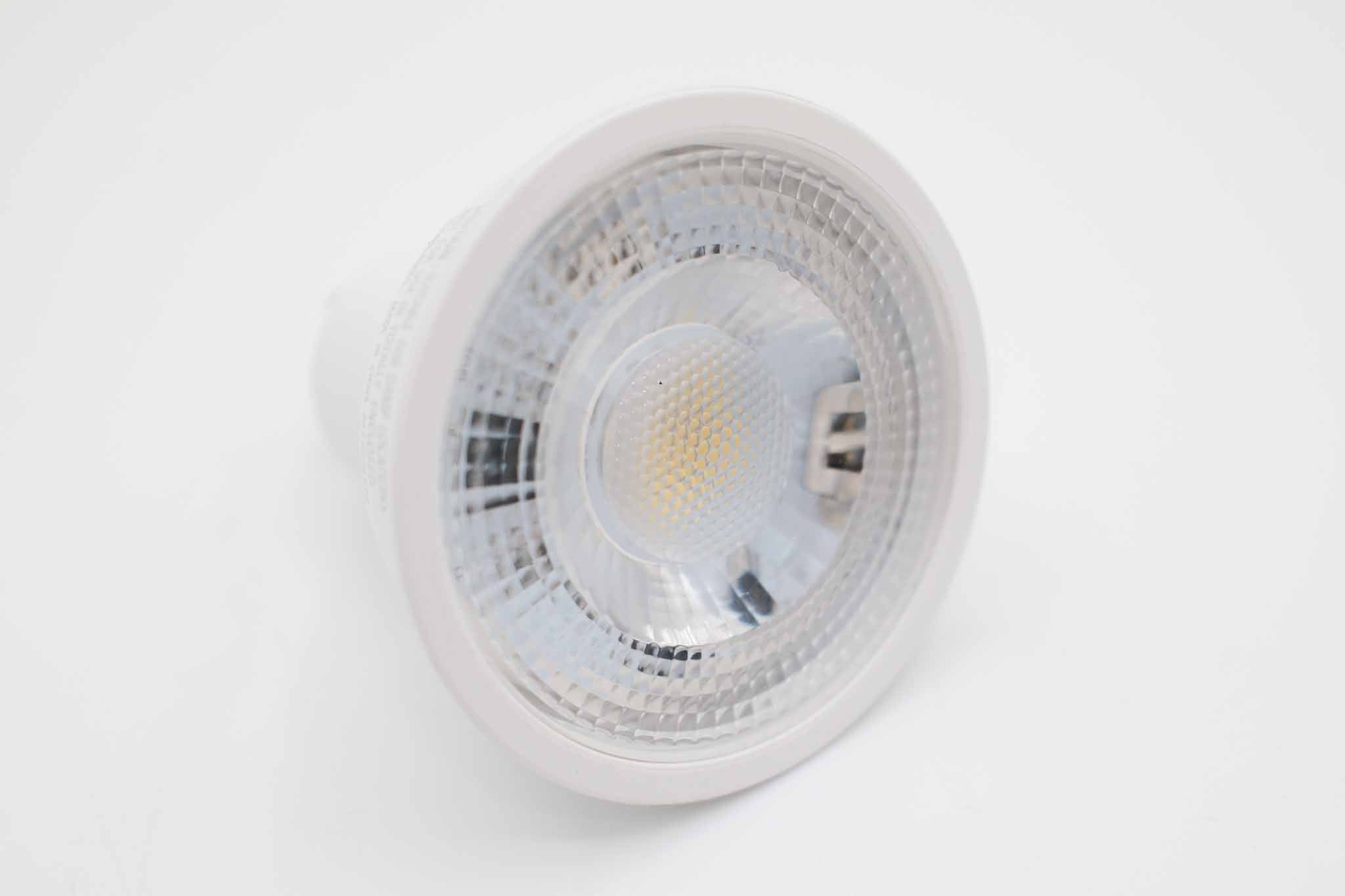

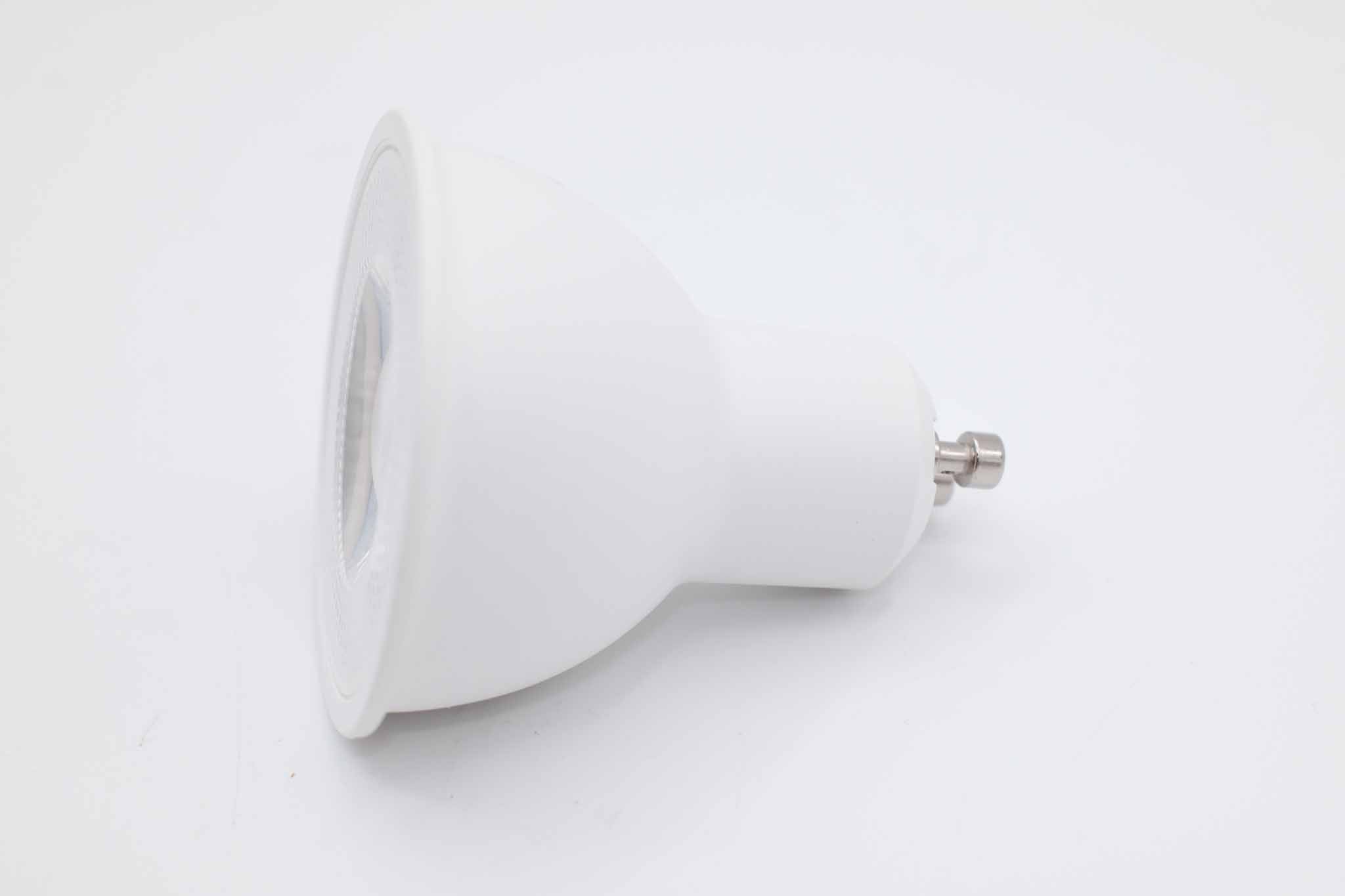

1 LED Array 120VAC Light Bulb with PAR16 Base
Used On / Where is it Located:
S7 Nighthawk
S15C Falcon
S35C Kestrel
Located above the Cooler Tray of the Roaster
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage; replace as needed. Symptoms indicating replacement needed include No Light, Flickering Light or Dim Light. This is a 110v Light Bulb. To troubleshoot an inoperable light bulb, use a standard bulb in the fixture. This will rule out any issues relating to the circuit breaker, switch, fuse or wiring.
NOTE:
This light is used on the S7, S15C and S35C with the smaller stainless steel fixture similar to this:
Not compatible with the S70 or S15 S35 A and B mod black light fixture that looks similar to this:
If you have the black fixture, the correct bulb is part number 1002110
