Part #:
1002184
Contents:
1 Brass Compression Fitting 1/2" NPT Male 5/8" Tube
Used On / Where is it Located:
A15 Merlin
S15A/B Falcon
S35A/B Kestrel
S70A/B Peregrine
The compression fitting is located on the Electrode inside the burner housing. This fitting is not compatible with the CMOD style electrodes that goes through the side of the cyclone
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage. This part may need to be replaced during the burner / electrode removal. Symptoms indicating replacement needed include inability to adjust the electrode, damage to the ferrule upon removal.
Note:
This part is included in the purchase of any Burner or Electrode as well.

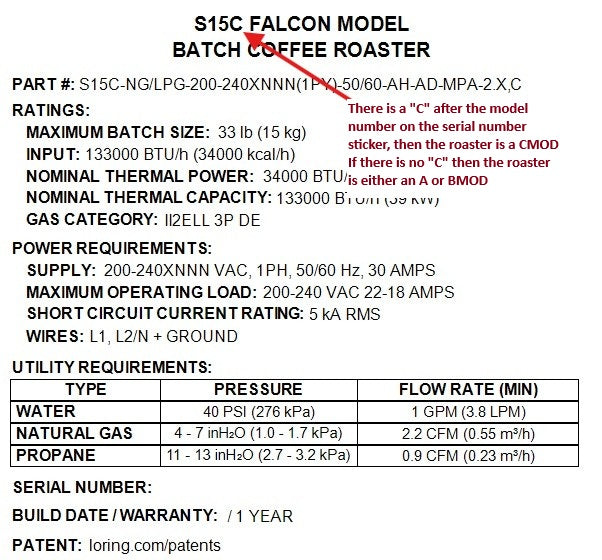

An easy way to tell the difference between an S15 A/BMOD and an S15 CMOD is by the product sticker, usually located on the back of the machine.
