Part #:
1002340
Used On / Where is it located:
S70A/BMOD Peregrine
The return air thermocouple is located on the back of the drum under the inlet air S-duct
Contents:

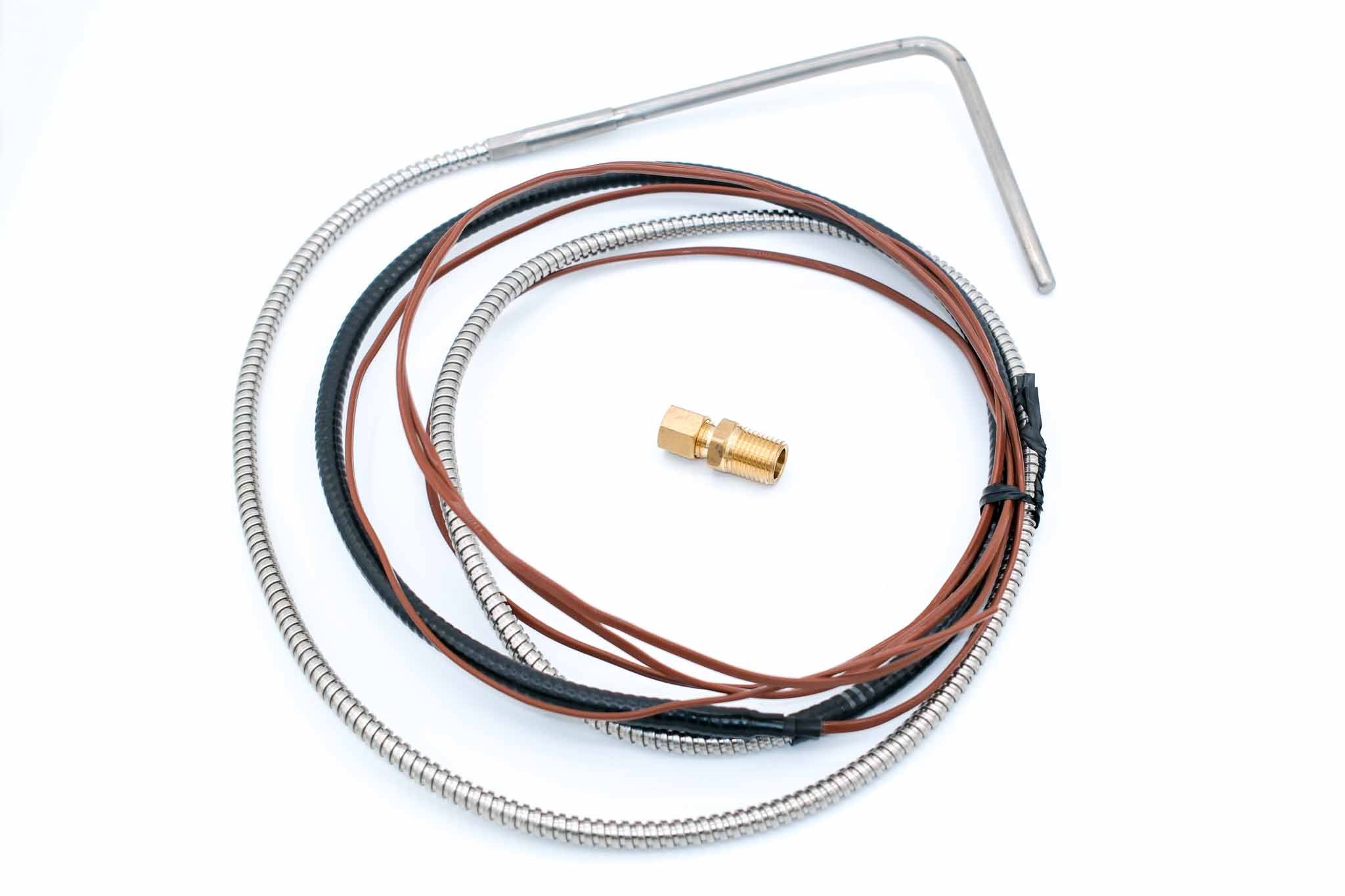

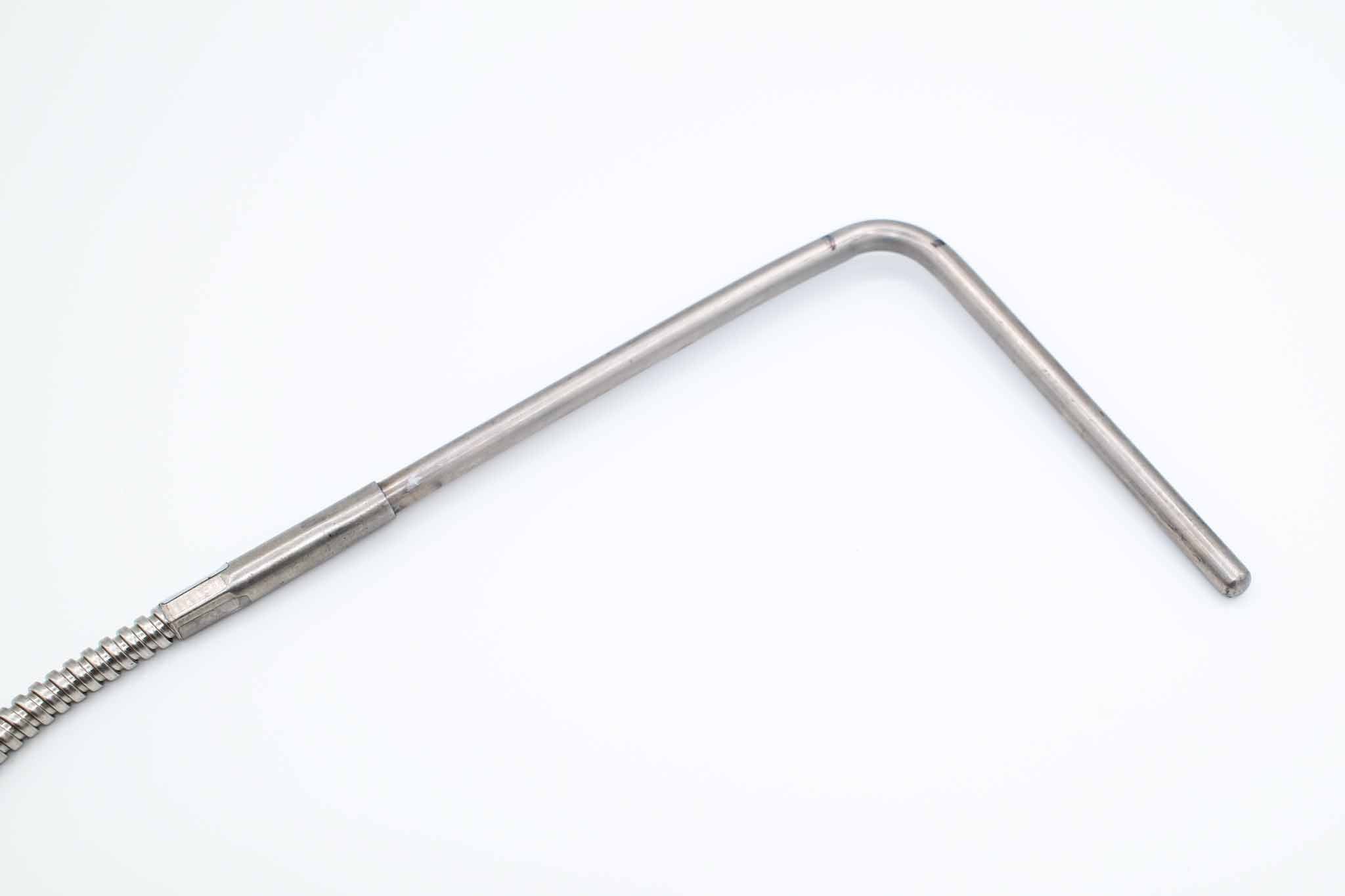

1 S70A/BMOD Inlet Air Temp Thermocouple
1 Compression fitting assembly
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage. Symptoms indicating replacement needed include damage resulting from improper removal or usage, or inaccurate inlet temperature readings.
Note:
A damaged thermocouple typically shows extreme temperature readings or a zero temperature. Improper positioning of the thermocouple can influence return air temperature readings without being damaged. Contact Loring support for instructions regarding the proper positioning of the return air thermocouple.
How to tell if your roaster is a CMOD or an A/BMOD
