S35 Bean Temp Thermocouple M12 Connector Upgrade Kit

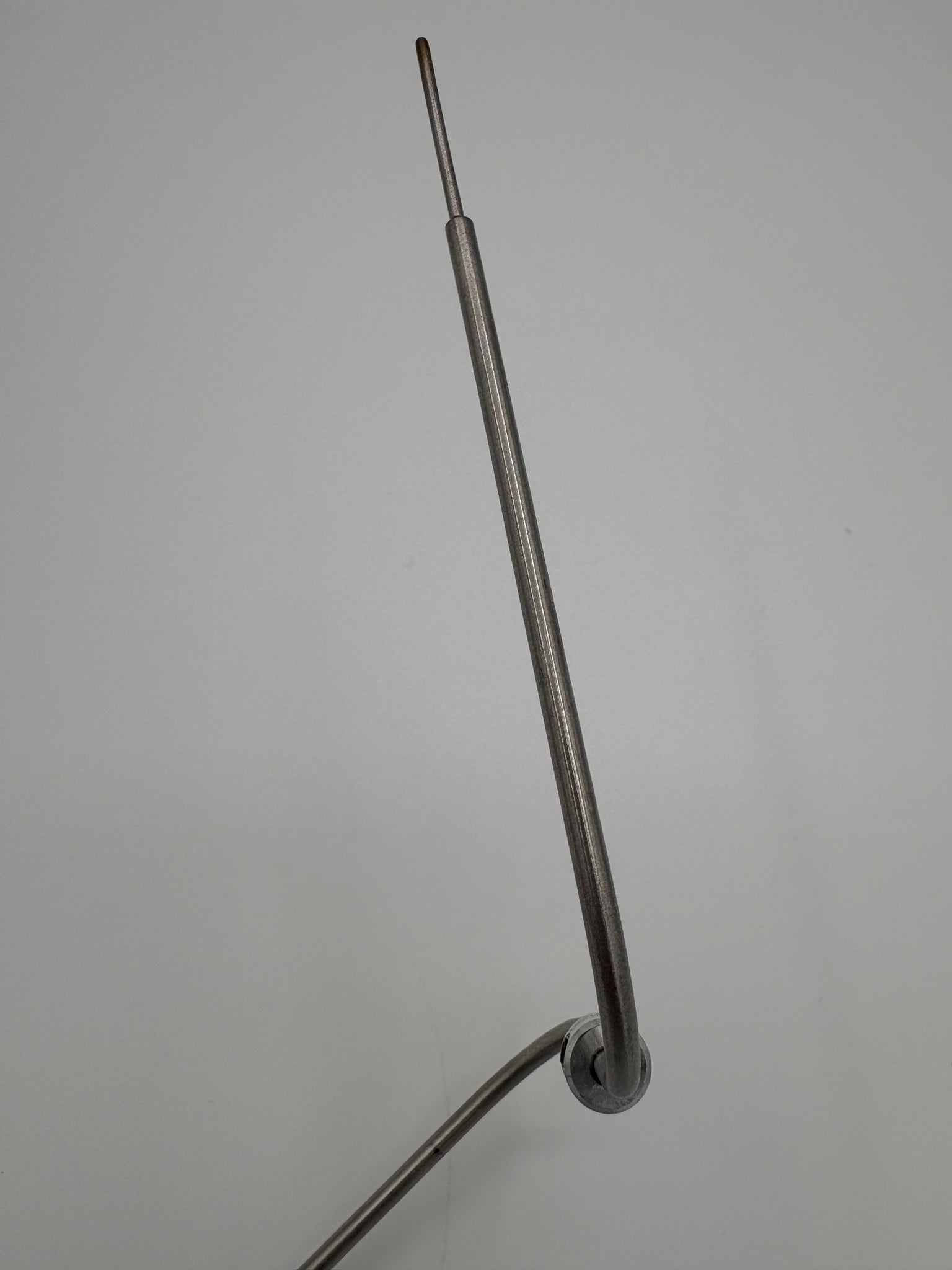

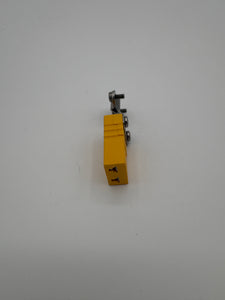

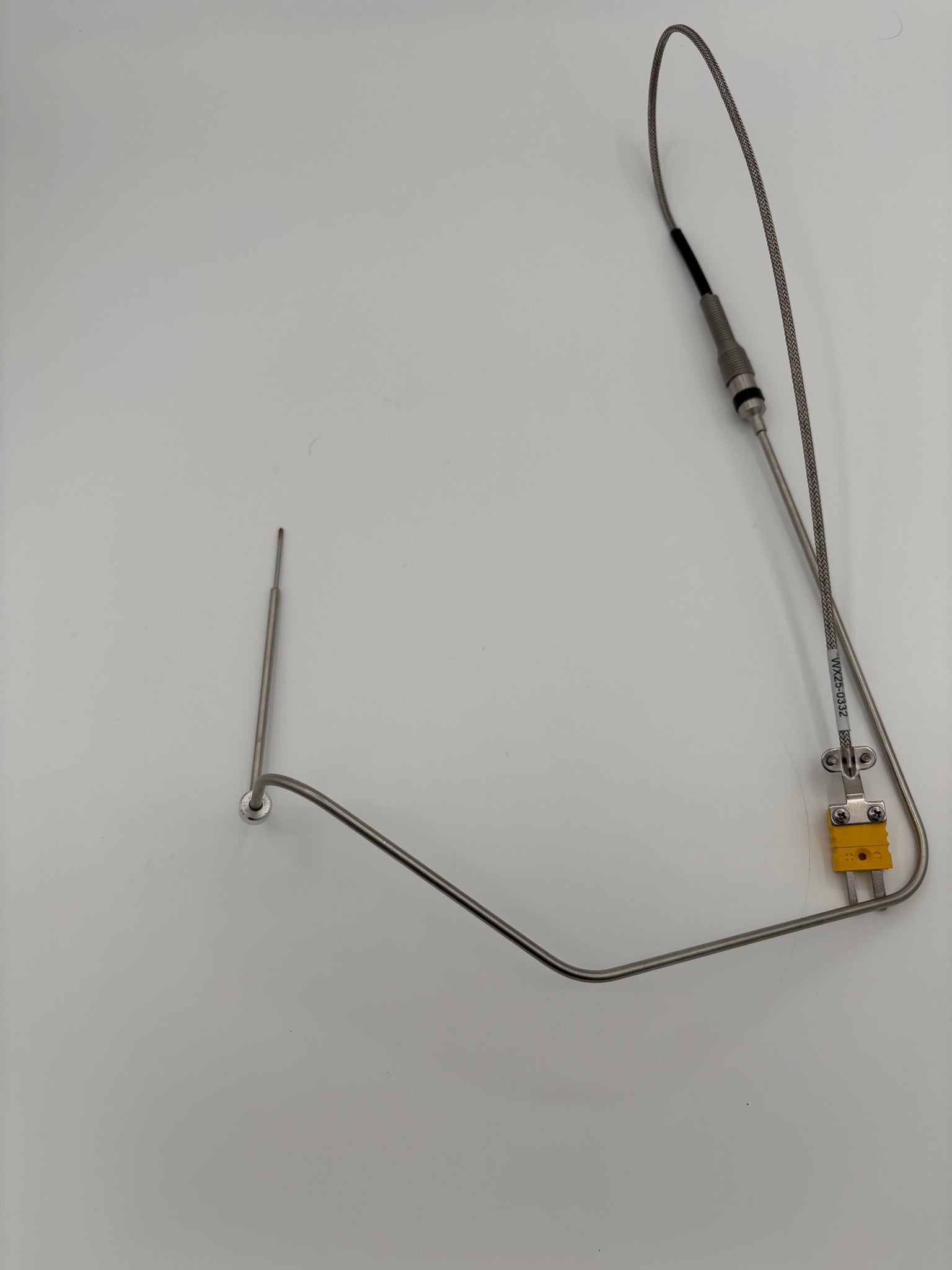

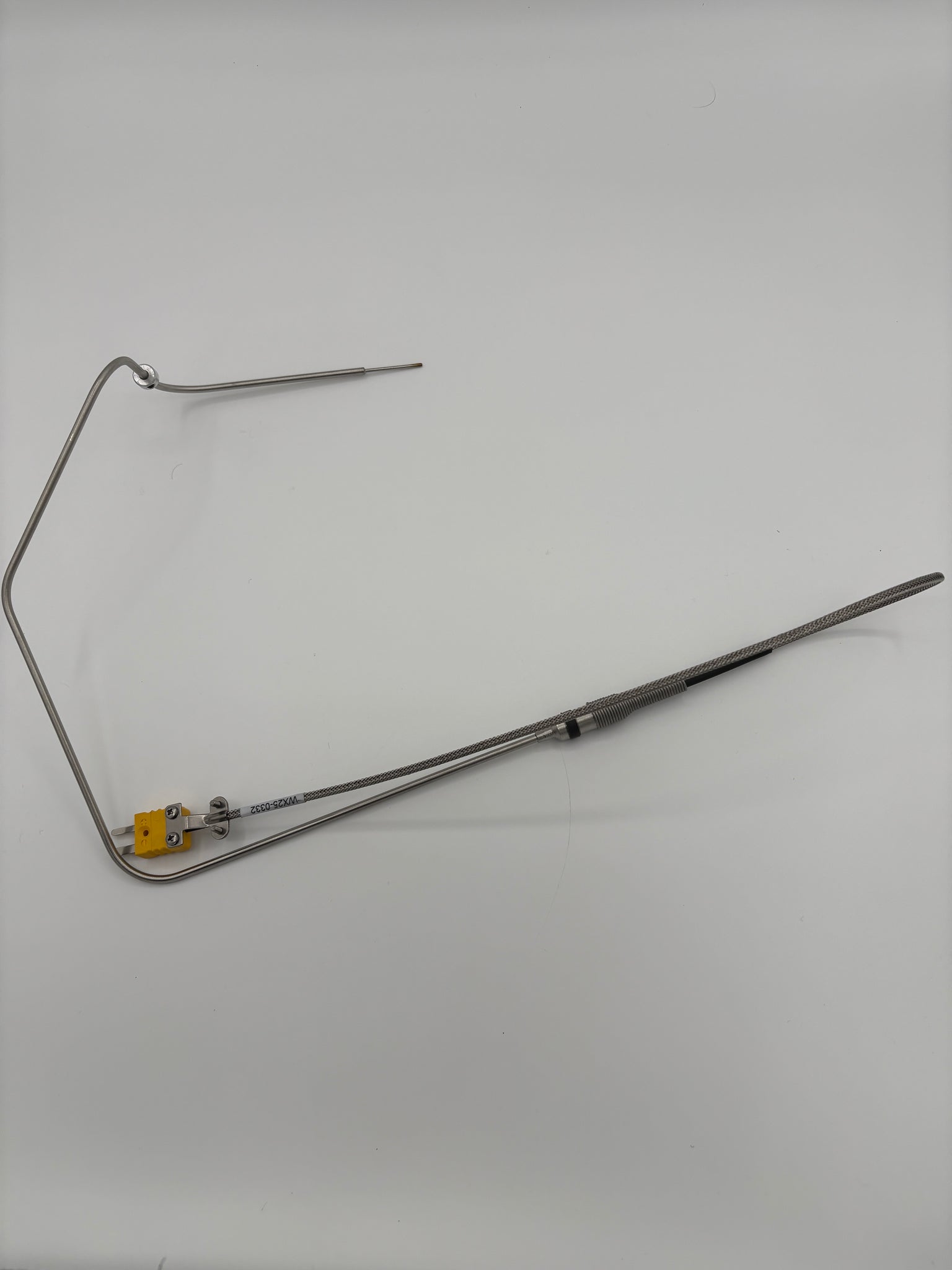

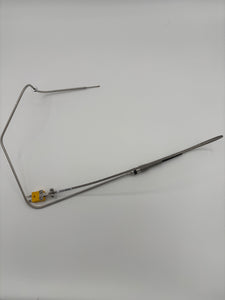

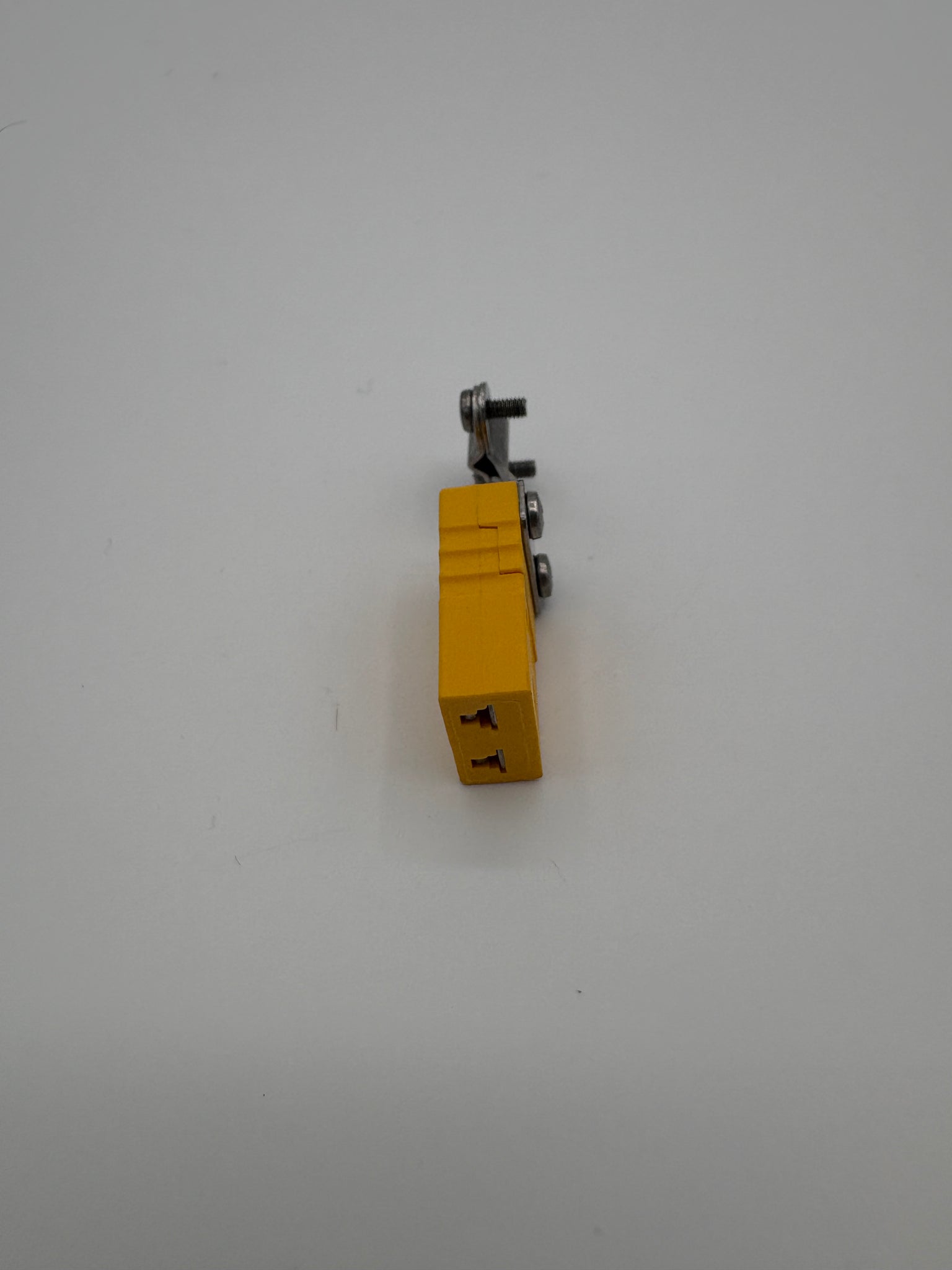

1 – S35 Bean Temp Thermocouple Lead Wires with M12 Connector

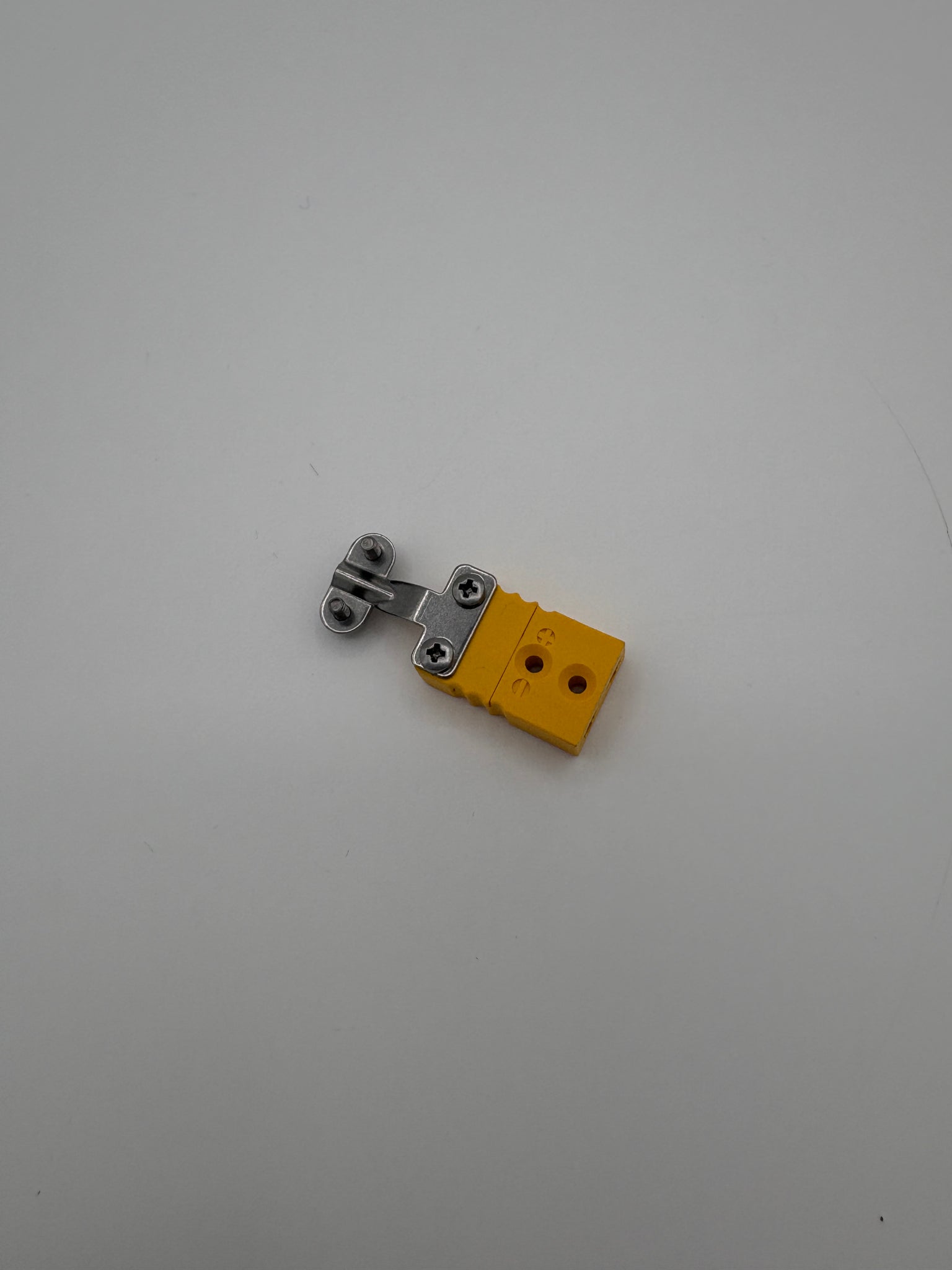

2 - S35 Bean Temp Thermocouple Support Brackets
NOTE: This upgrade kit does not include an S35 Bean Temp Thermocouple (PN: 1010022)
This M12 connector upgrade simplifies the removal of the bean discharge door and bean thermocouple.
Used On / Where is it Located:
Discharge Door to Electrical Cabinet
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage. Symptoms indicating replacement needed include damage resulting from improper removal or usage or inaccurate bean temperature readings.
Note: A damaged thermocouple typically shows extreme temperature readings or a zero temperature. Improper positioning of the bean thermocouple can influence bean temperature readings without being damaged. Contact Loring support for instructions regarding proper positioning of the bean thermocouple.
