Part #:
1007629-01
Description:

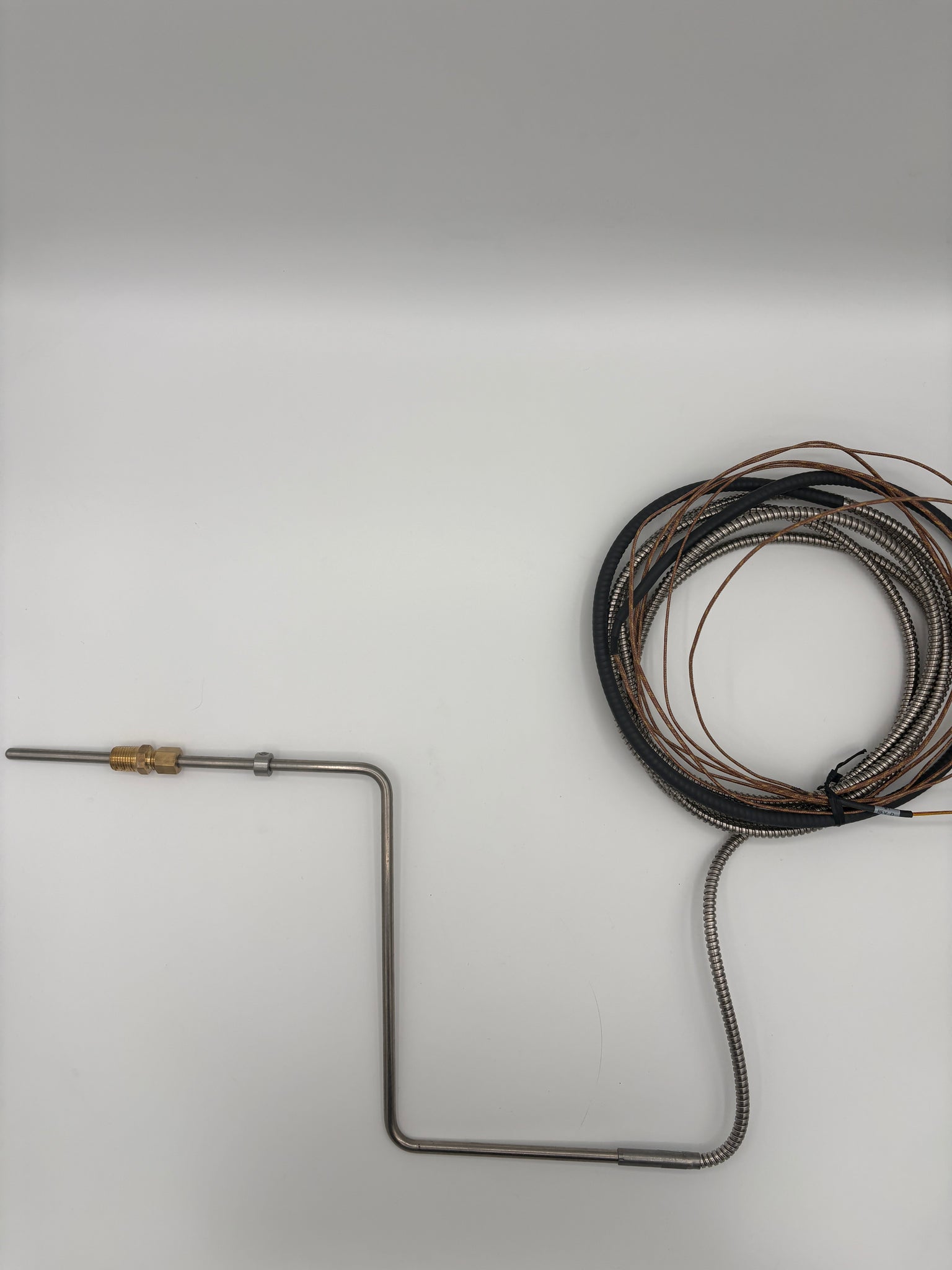

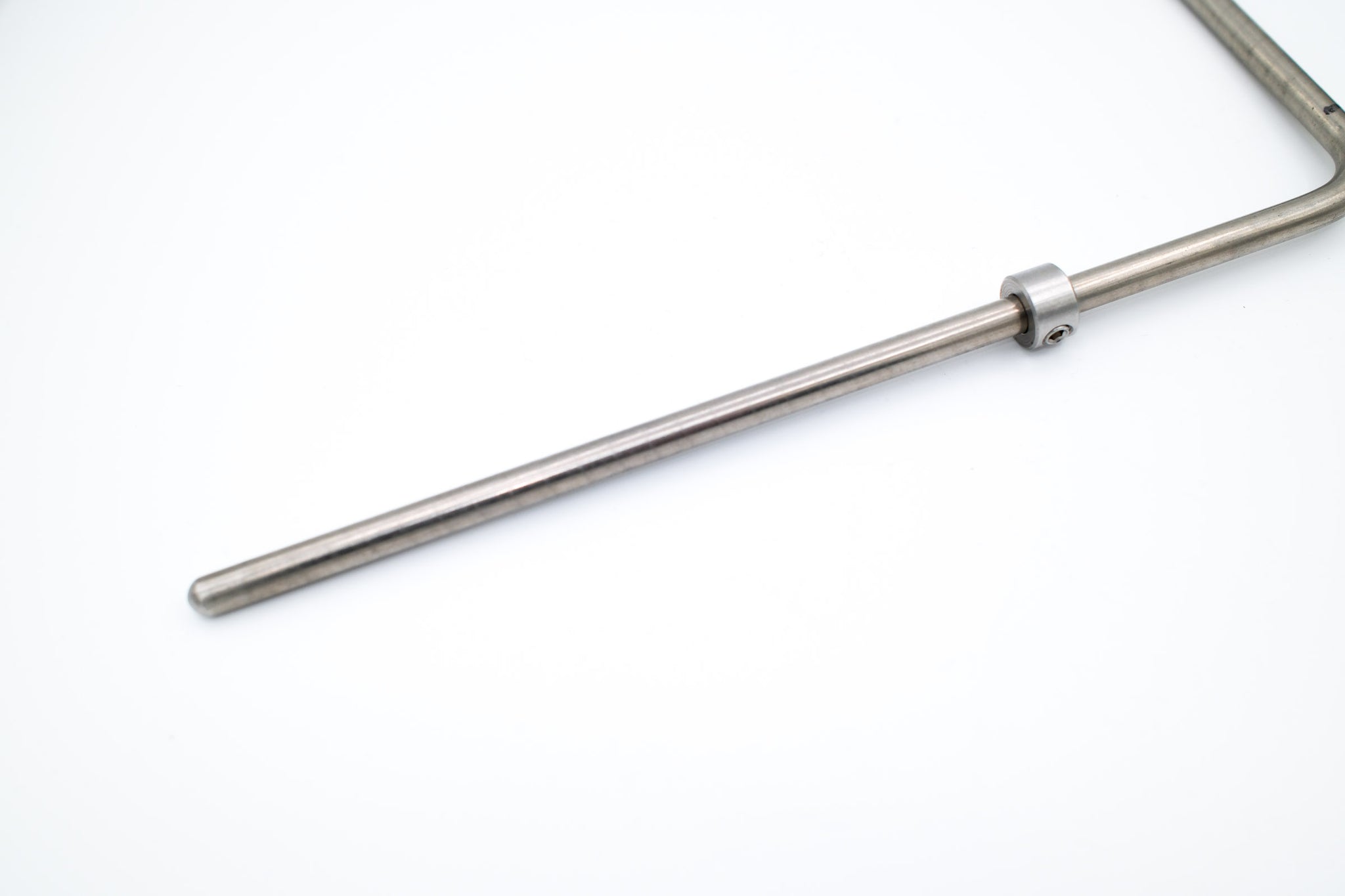

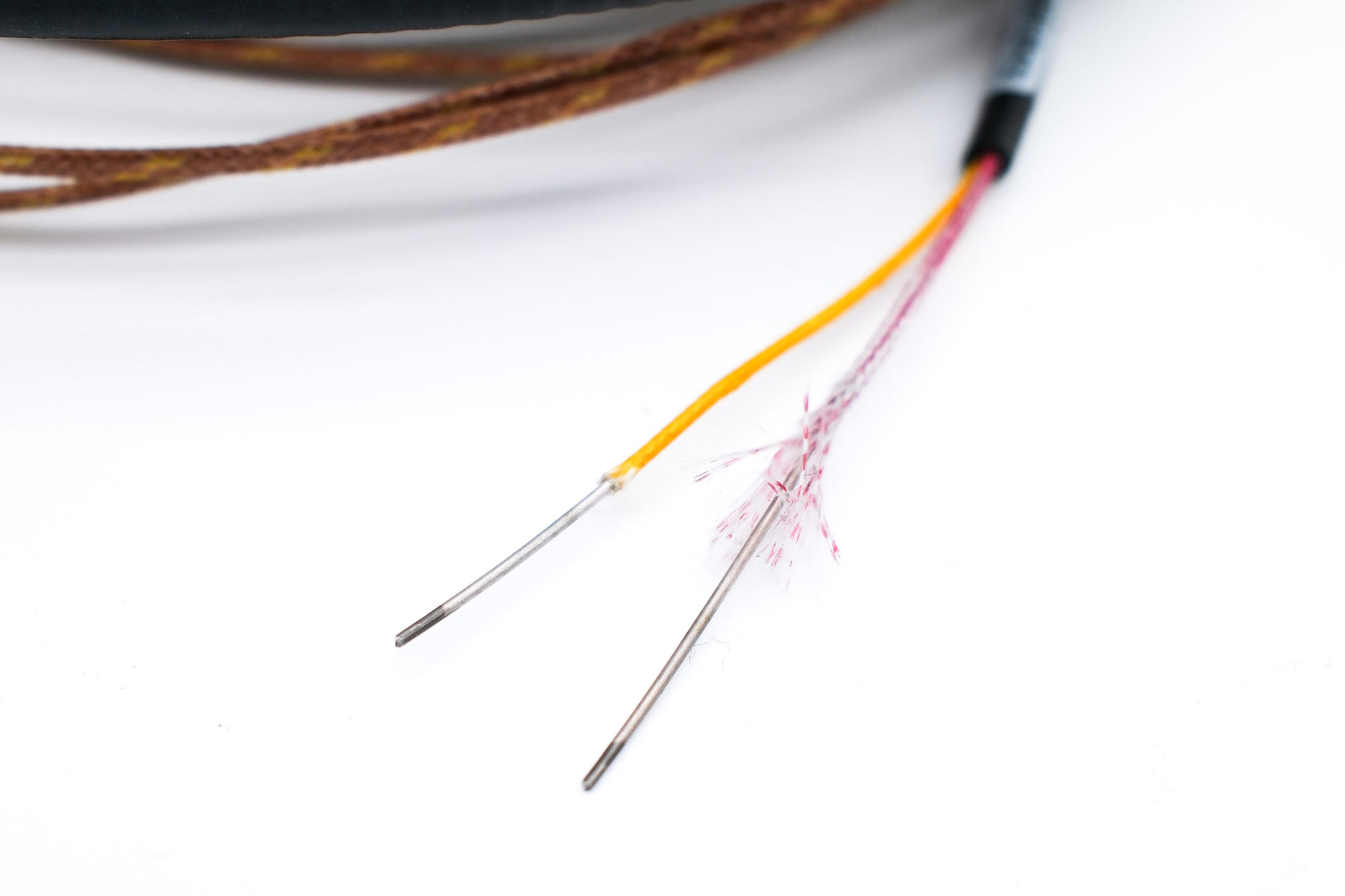

S15A/BMOD Peregrine Hi-Temp Thermocouple for the WattLow
Contents:

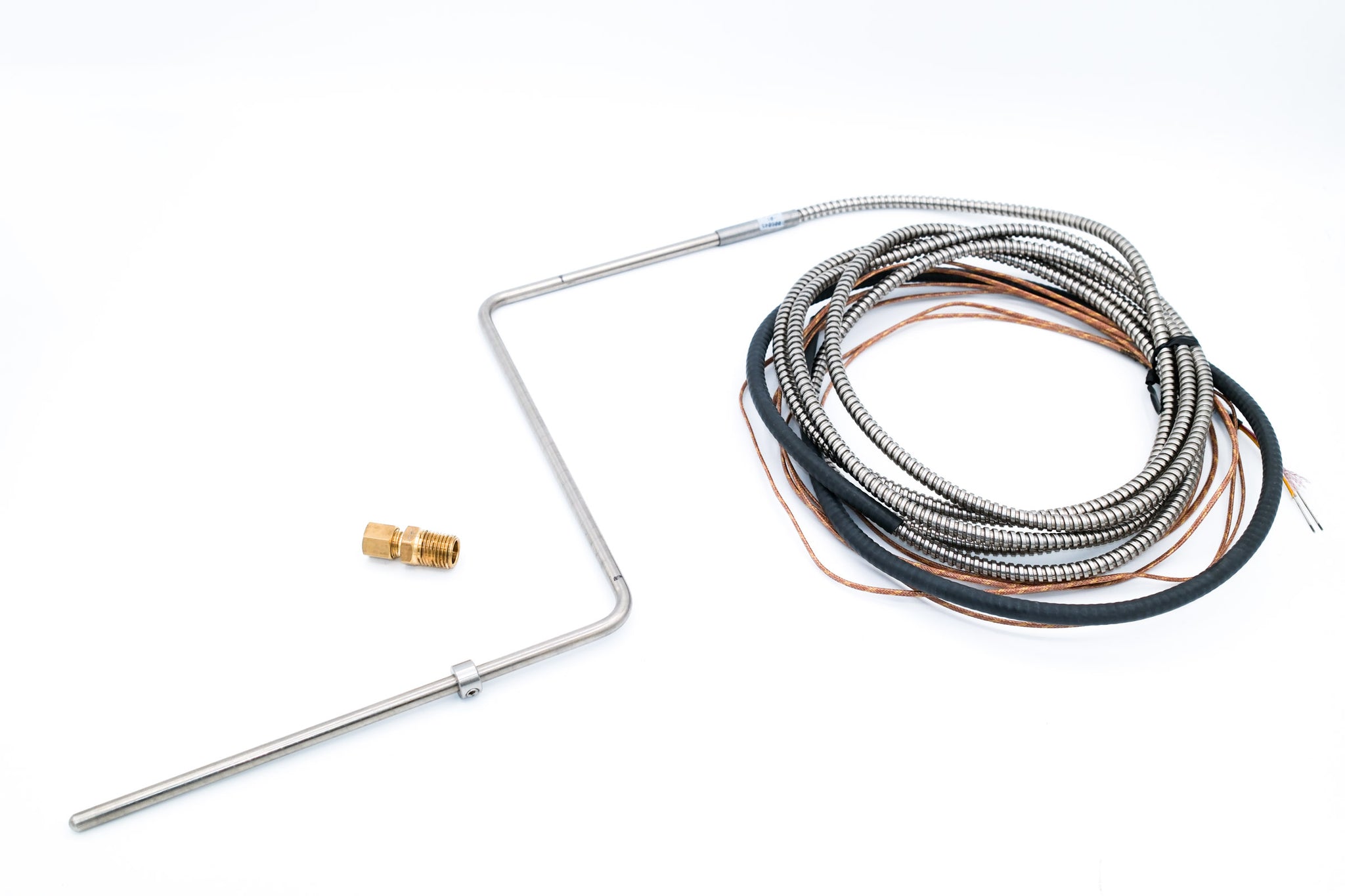

1 S15 Peregrine Hi-Temp Thermocouple for the WattLow
1/4" NTP compression fitting assembly
Used On / Where is it Located:
S15 Falcon A/BMOD roasters
The Hi-Temp Thermocouple for the WattLow is one of 2 thermocouples at the top of the cycloen, just below the stack hat
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage. Symptoms indicating replacement needed include damage resulting from improper removal or usage or inaccurate bean temperature readings.
A damaged thermocouple typically shows extreme temperature readings or a zero temperature. Improper positioning of the bean thermocouple can influence bean temperature readings without being damaged. Contact Loring support for instructions regarding the proper positioning of the bean thermocouple.
Note:
An easy way to tell the difference between an S15 A/BMOD and an S15 CMOD is by the product sticker, usually located on the back of the machine.
