Part #
1010493
Description:

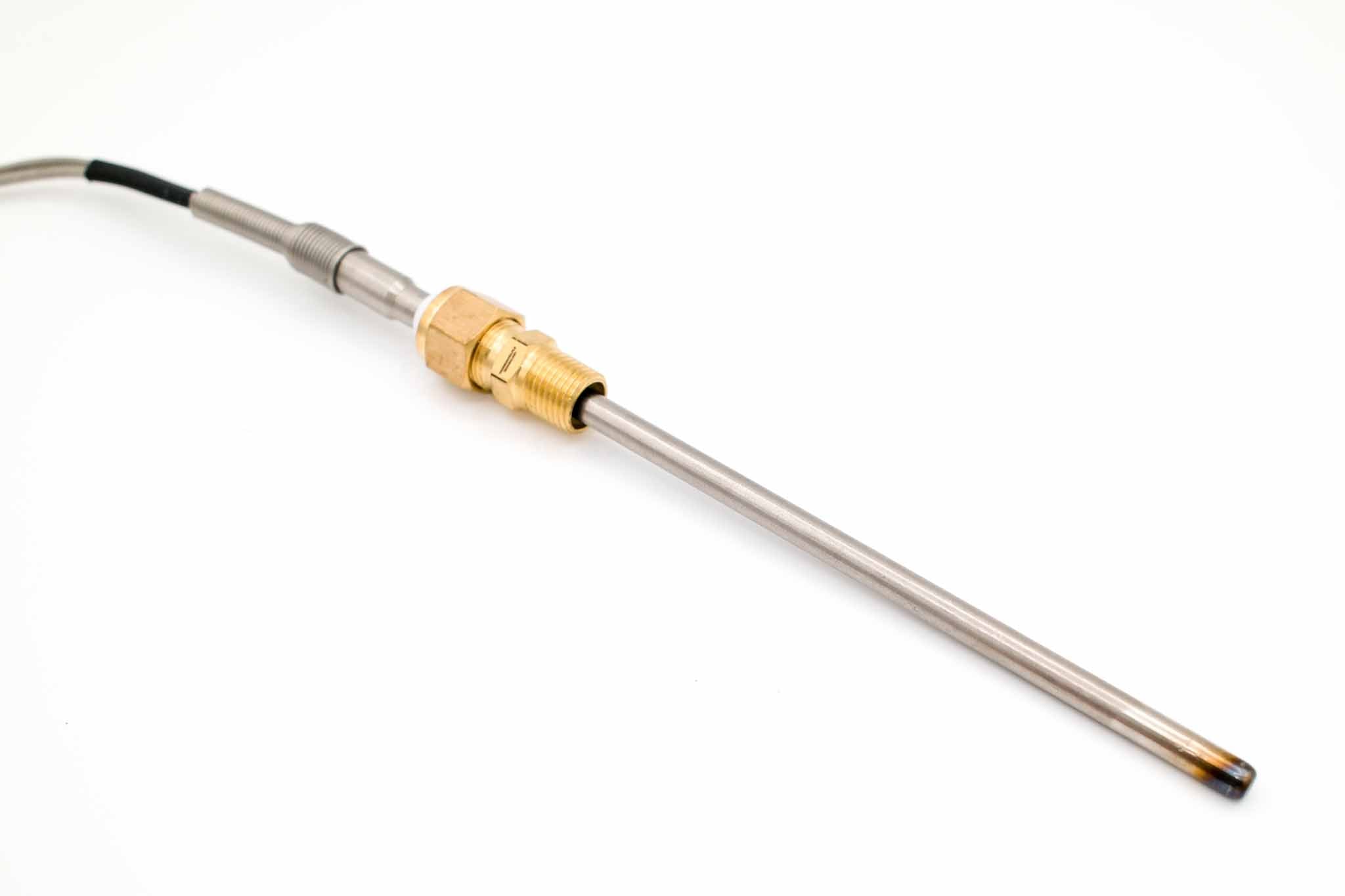

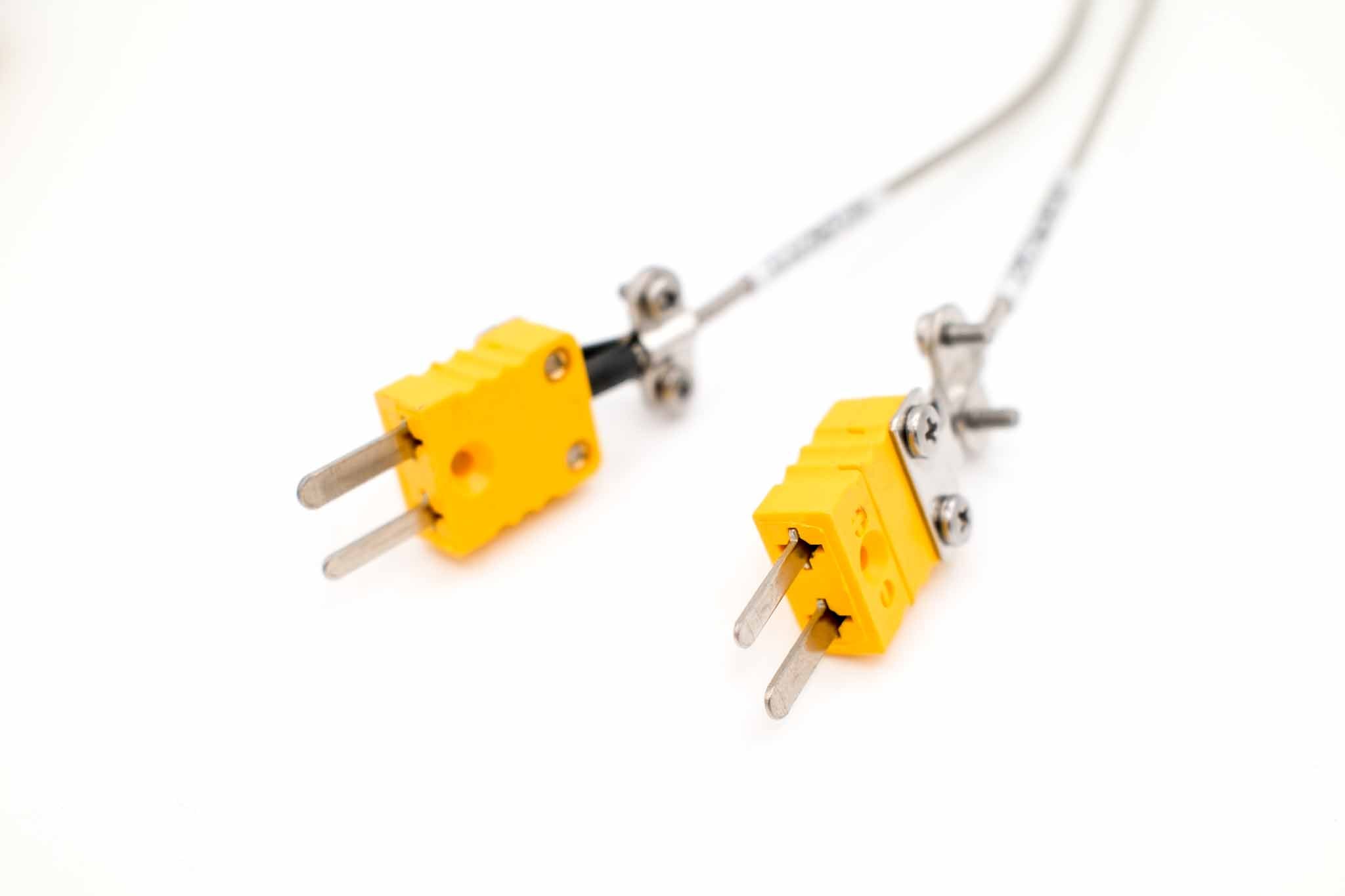

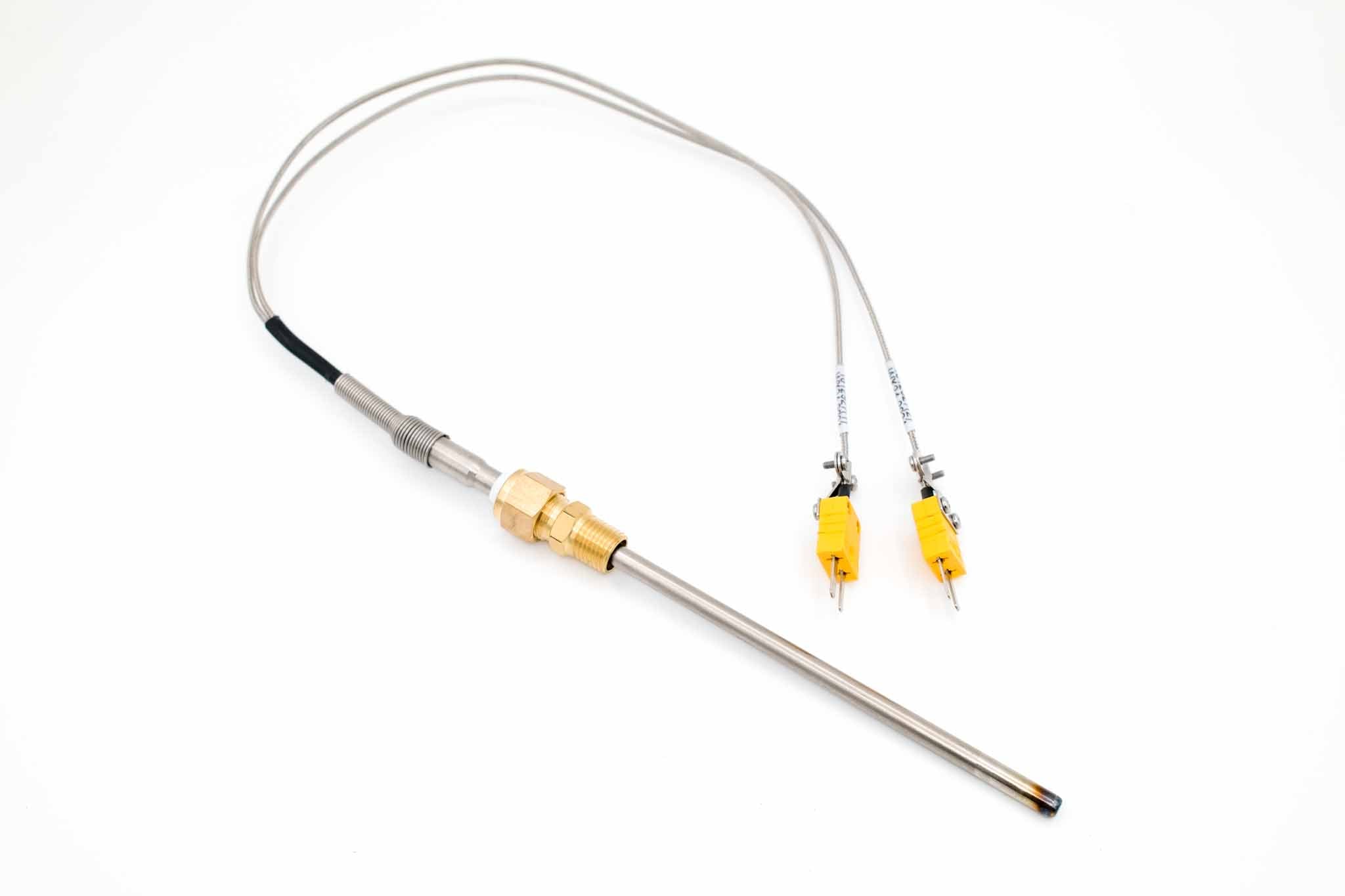

Replacement S35 Kestrel and S15 Falcon CMOD Hot Stack Dual Thermocouple
Used On / Where is it located:
S15 Falcon CMOD
S35 Kestrel CMOD

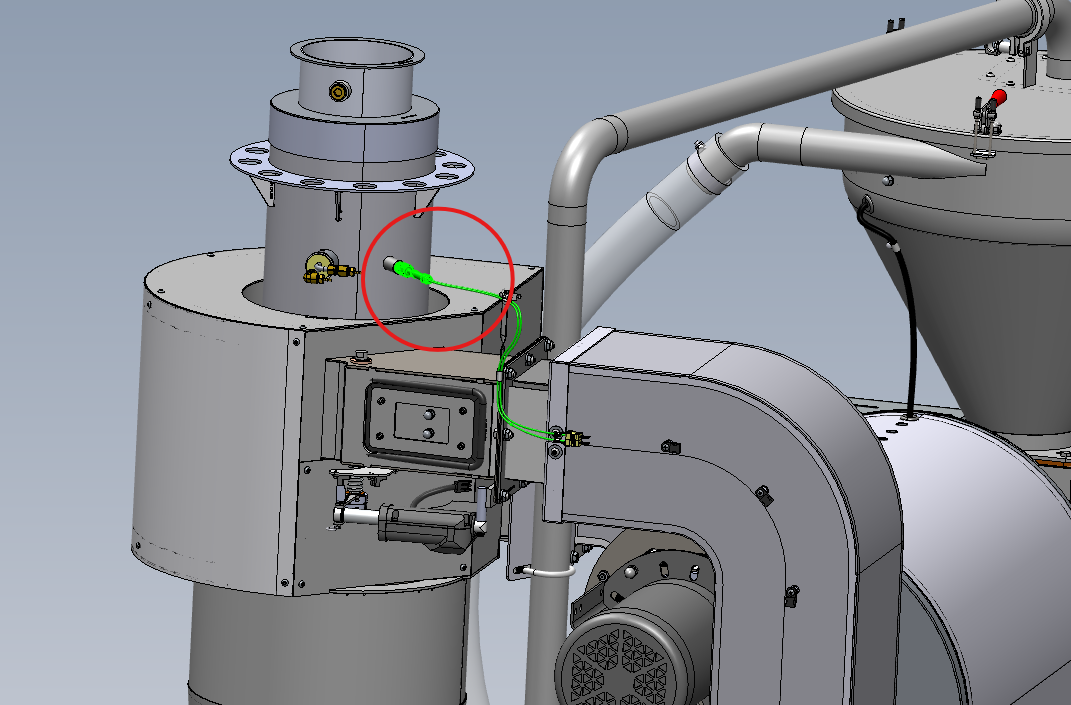

Located on the top of the cycloen just below the Stack Hat
Contents:
1 ungrounded CMOD Hot Stack Dual Thermocouple for the S15C or S35C
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage. Symptoms indicating replacement needed include damage resulting from improper removal or usage or inaccurate bean temperature readings.
Note:
A damaged thermocouple typically shows extreme temperature readings or a zero temperature. Improper positioning of the bean thermocouple can influence bean temperature readings without being damaged. Contact Loring support for instructions regarding proper positioning of the bean thermocouple.
