Part #
2013167
Description:

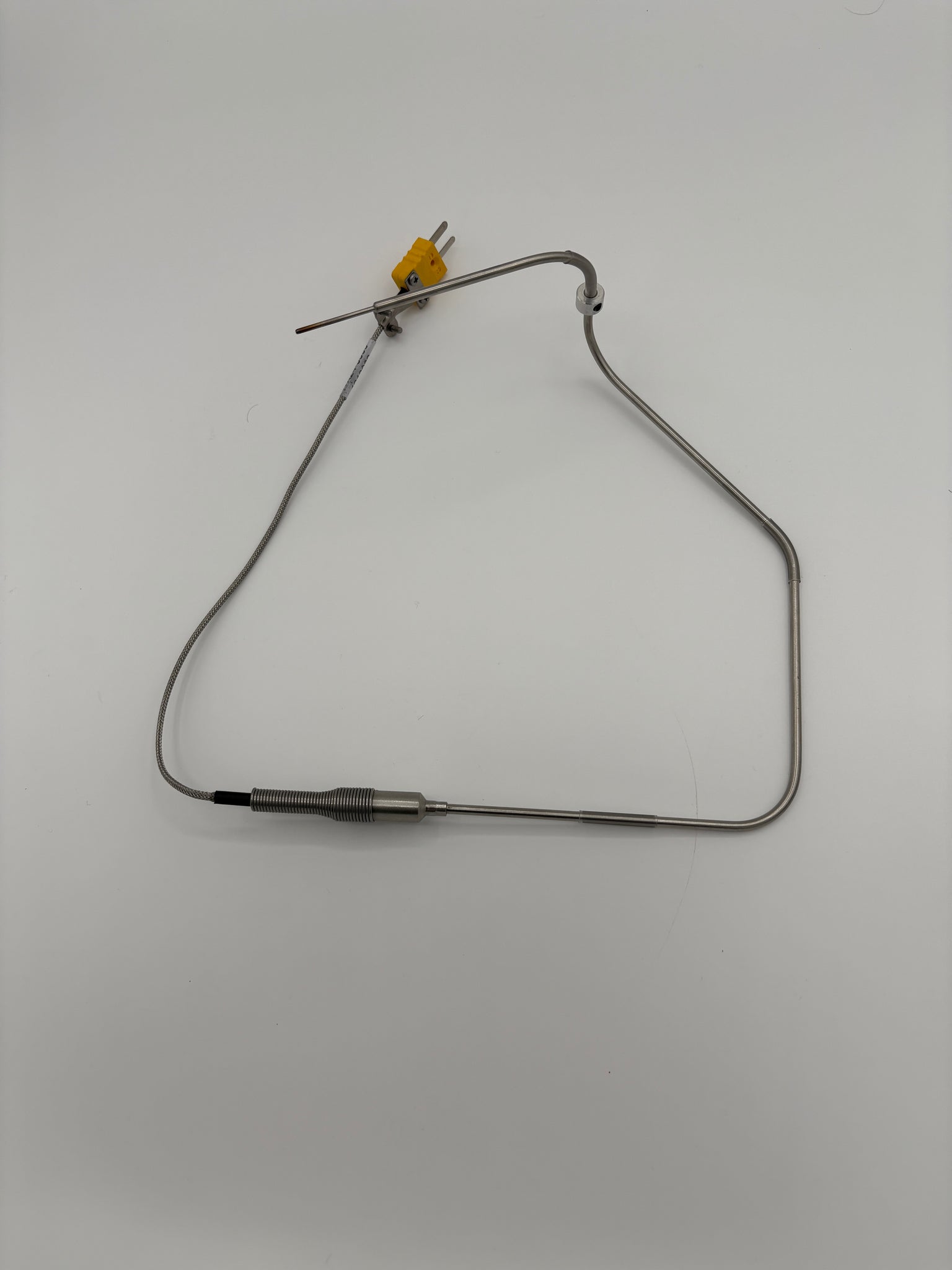

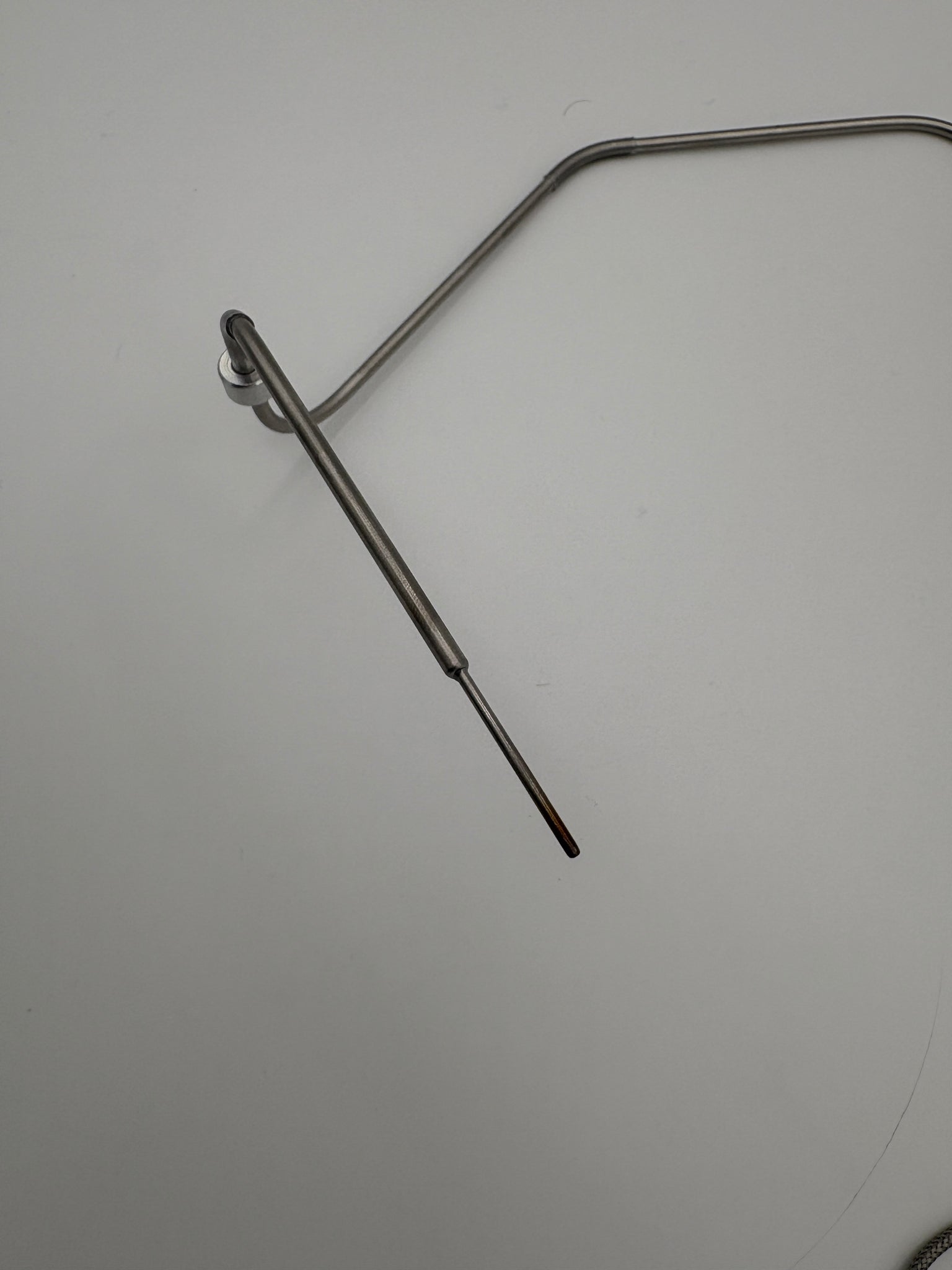

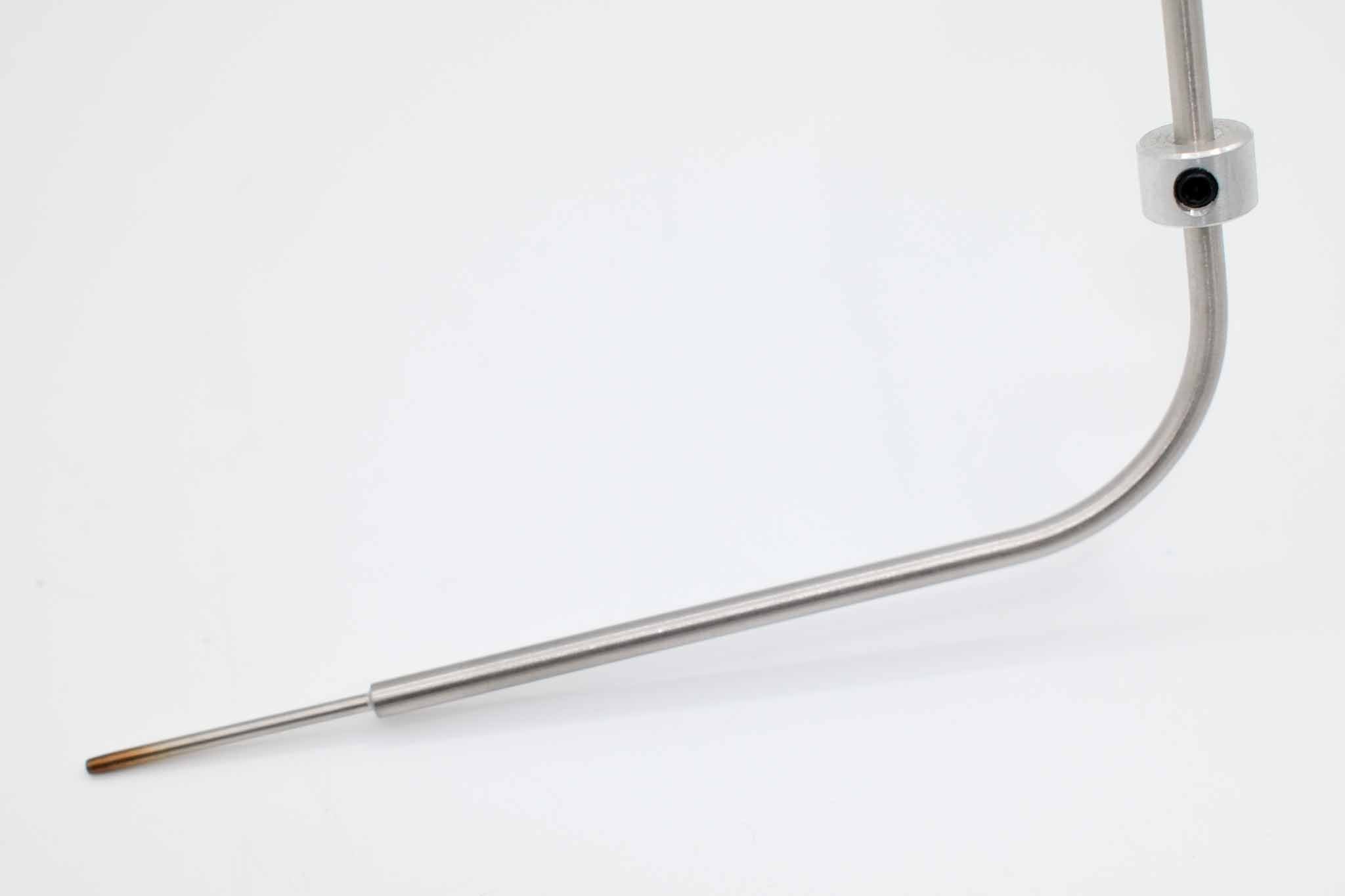

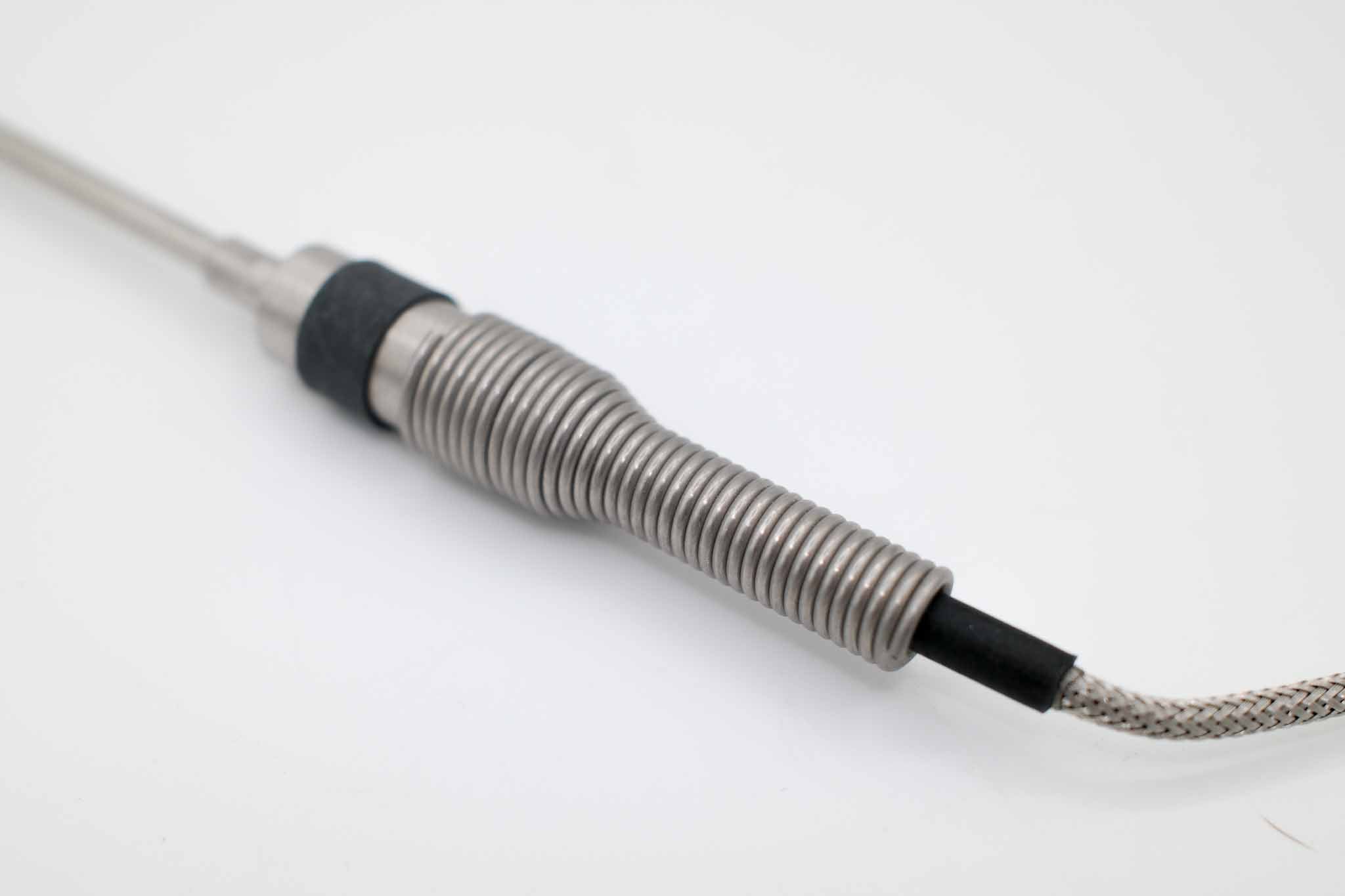

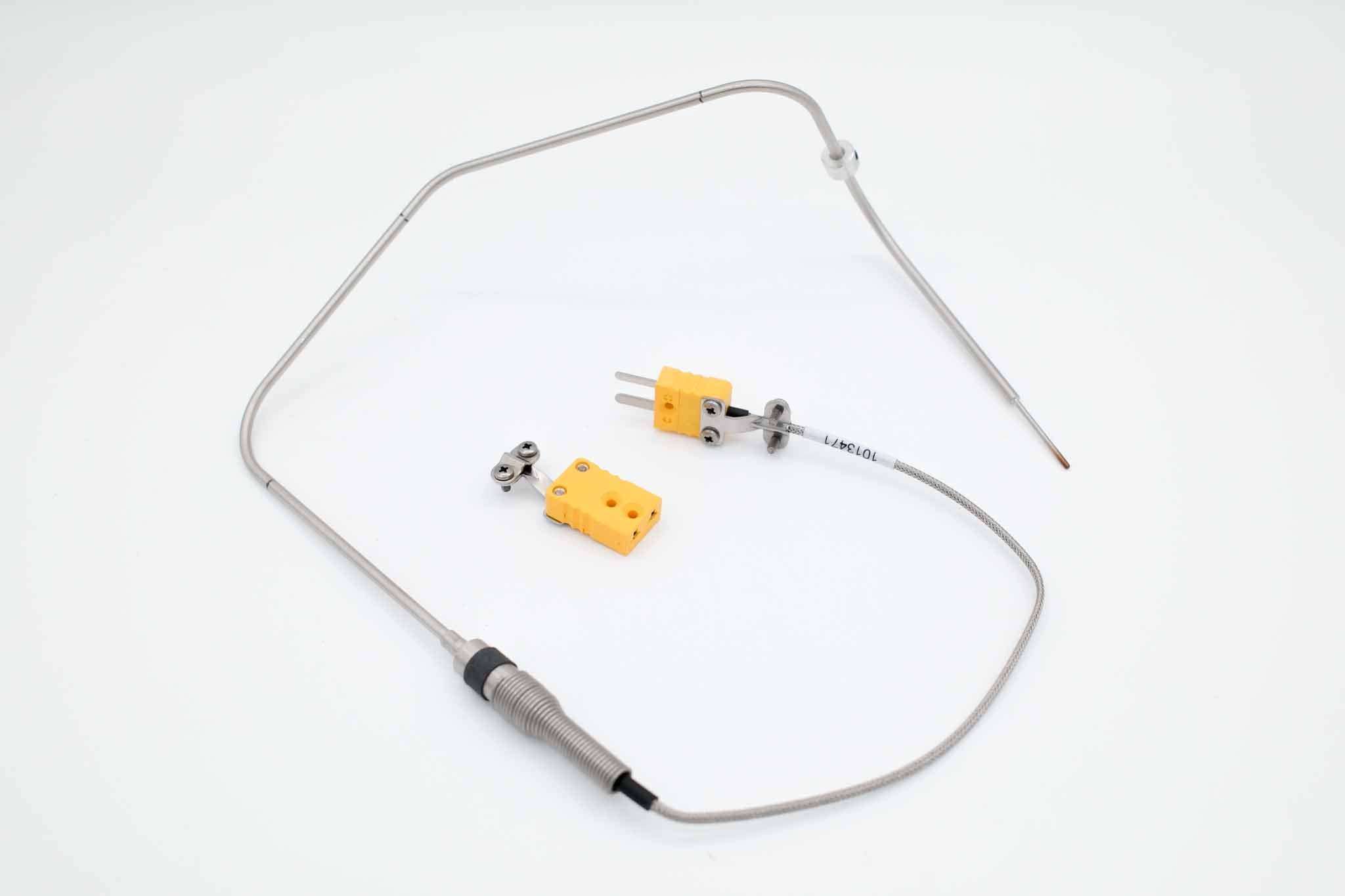

S15C bean thermocouple (Harness not included)
This is used on the S15C roaster with ground thermocouples and is not compatible with the S15A/B ground thermocouples.
Used On / Where is it located:
S15C Falcon

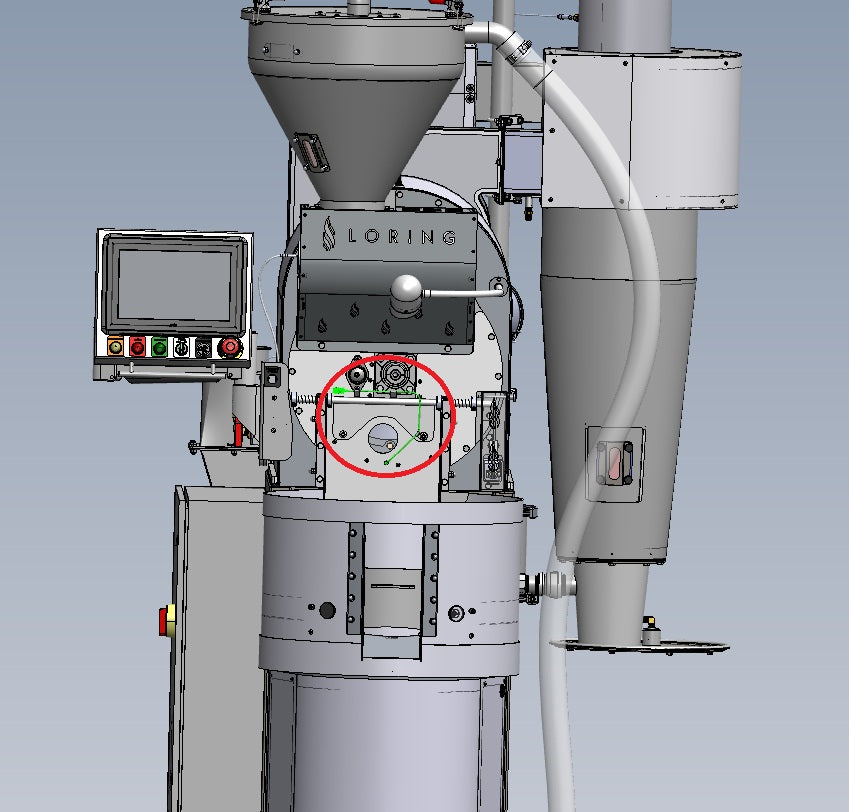

Located in front of the roaster in the discharge door.
Contents:
1 K-type bean thermocouple

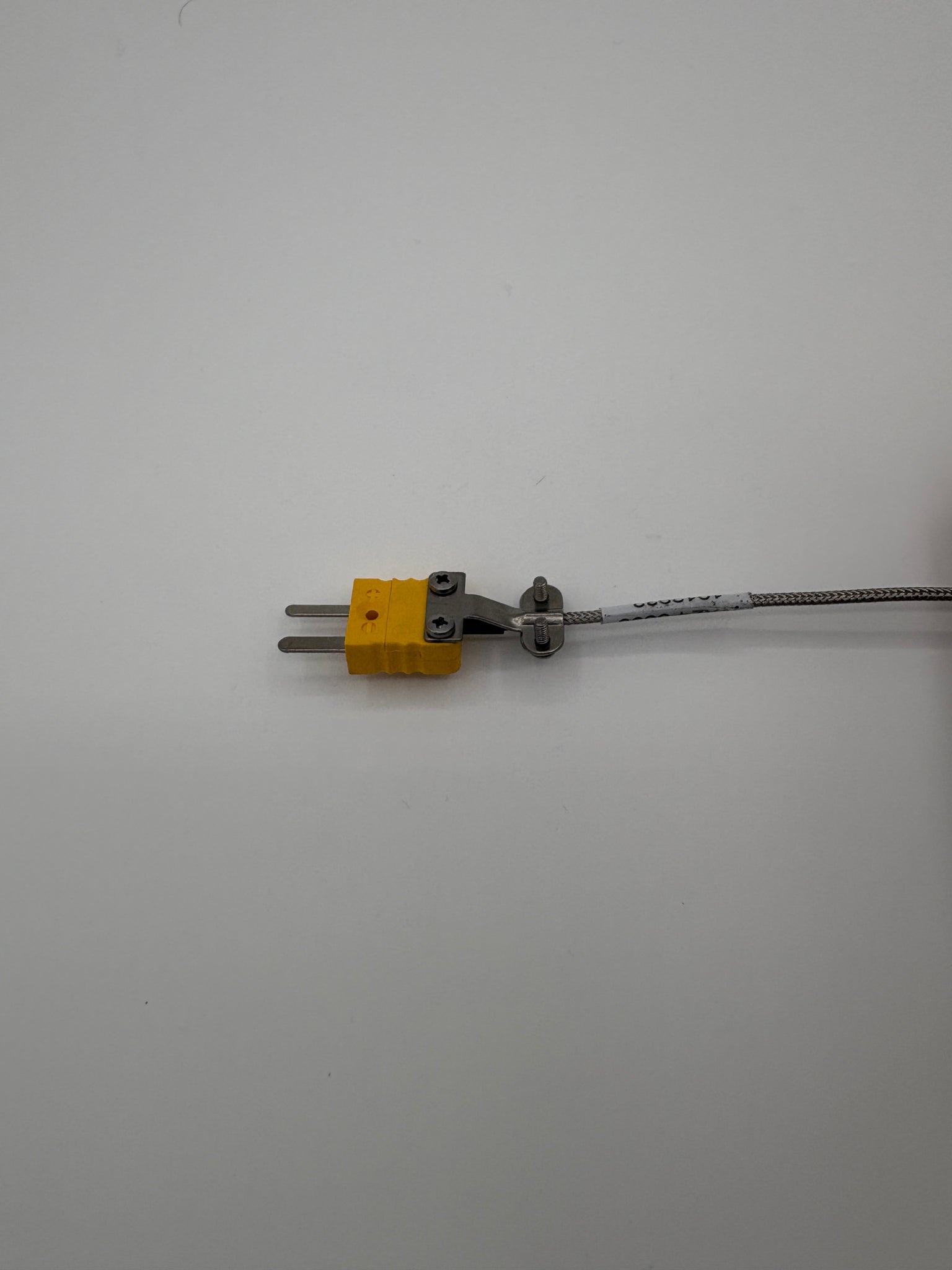

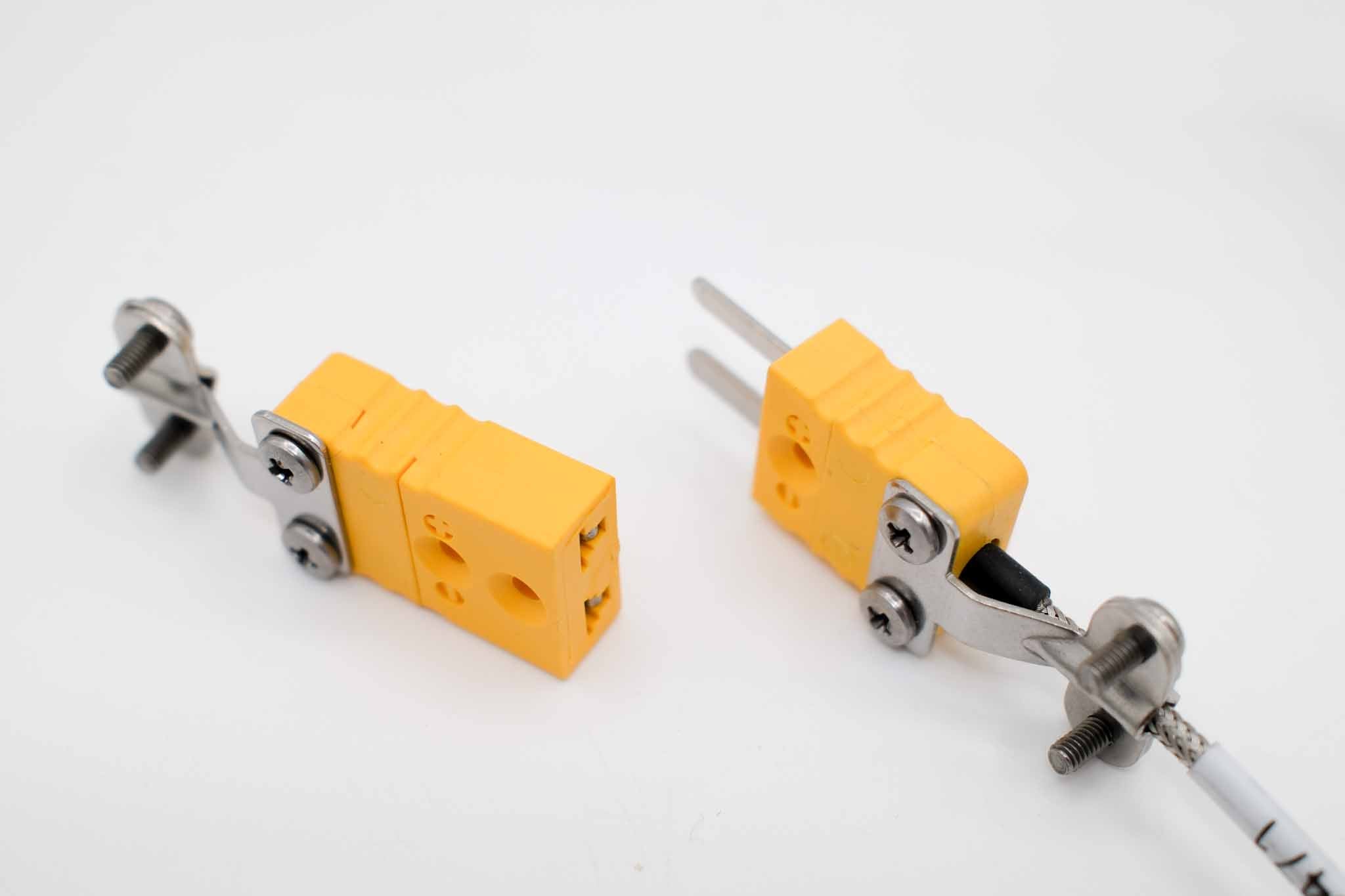

1 female yellow connector
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage. Symptoms indicating replacement needed include damage resulting from improper removal or usage, or inaccurate bean temperature readings.
A damaged thermocouple typically shows extreme temperature readings or a zero temperature. Improper positioning of the bean thermocouple can influence bean temperature readings without being damaged. Contact Loring support for instructions regarding the proper positioning of the bean thermocouple.
Please note:
An easy way to tell the difference between an S15 A/BMOD and an S15 CMOD is by the product sticker, usually located on the back of the machine.
