Part #:
2013163
Description:

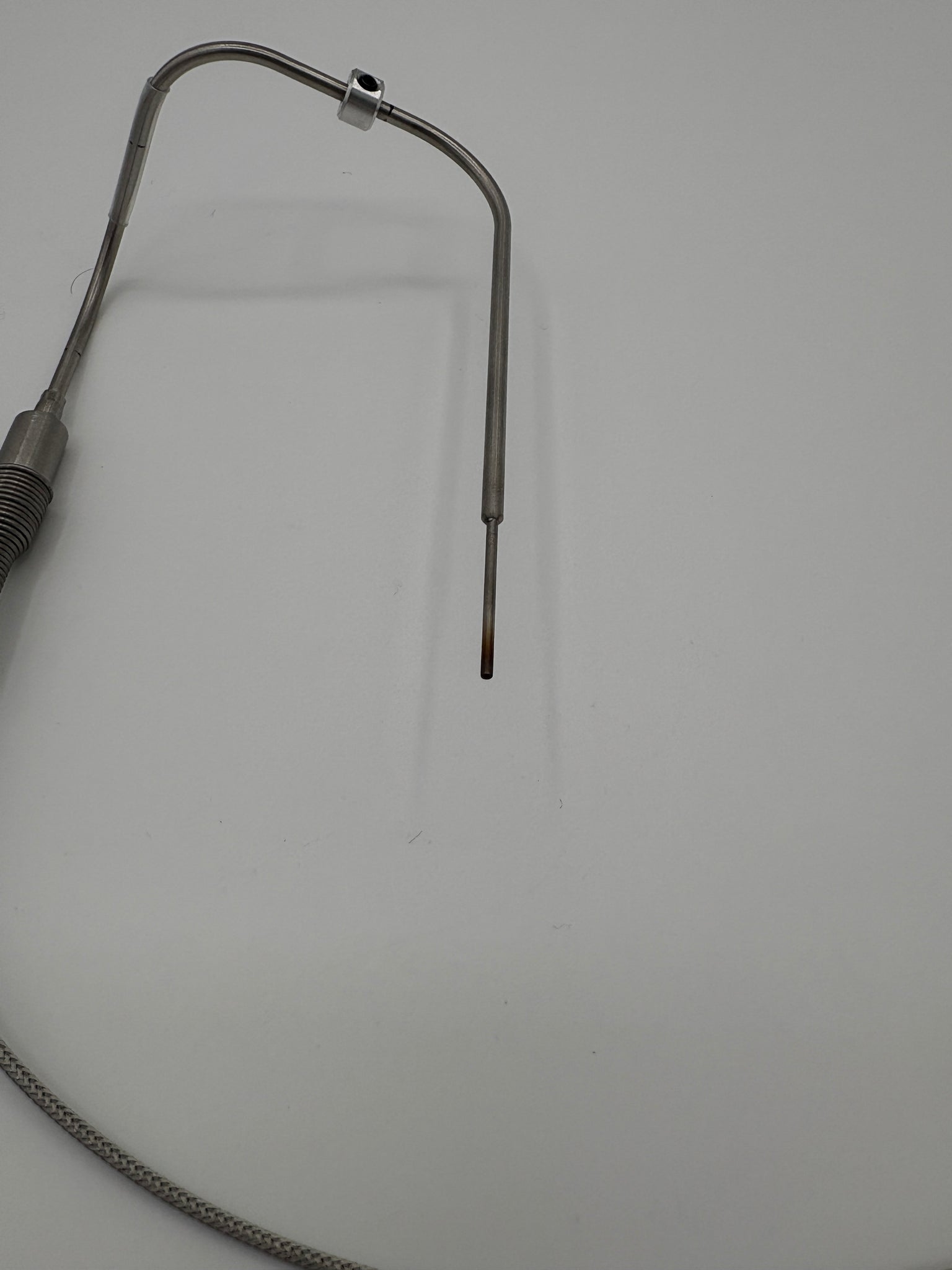

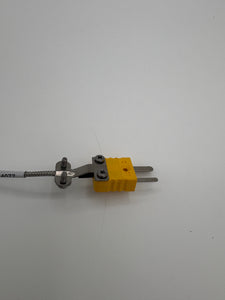

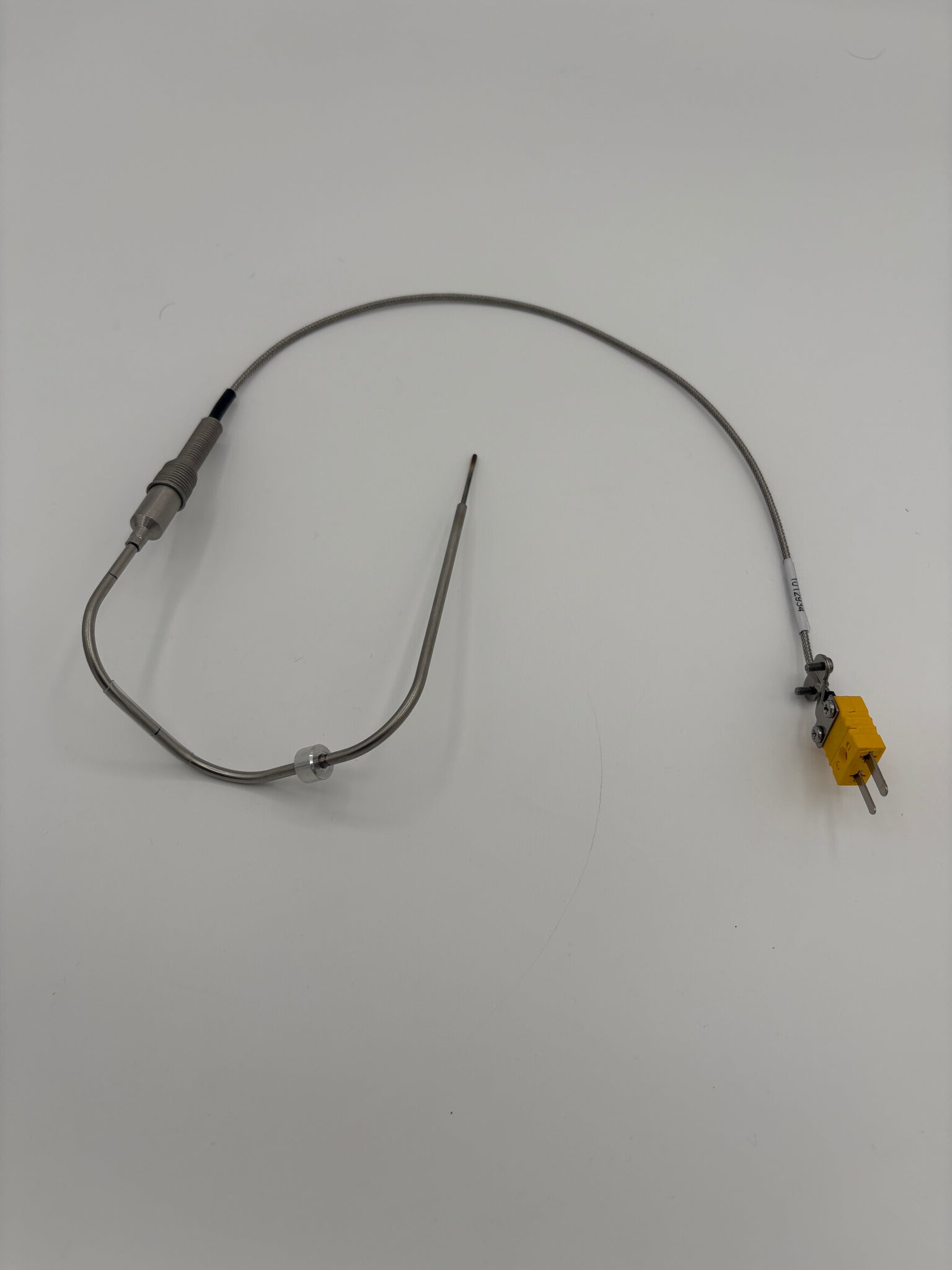

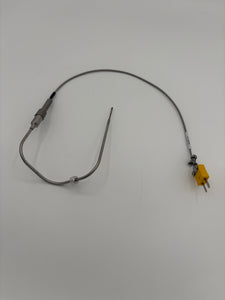

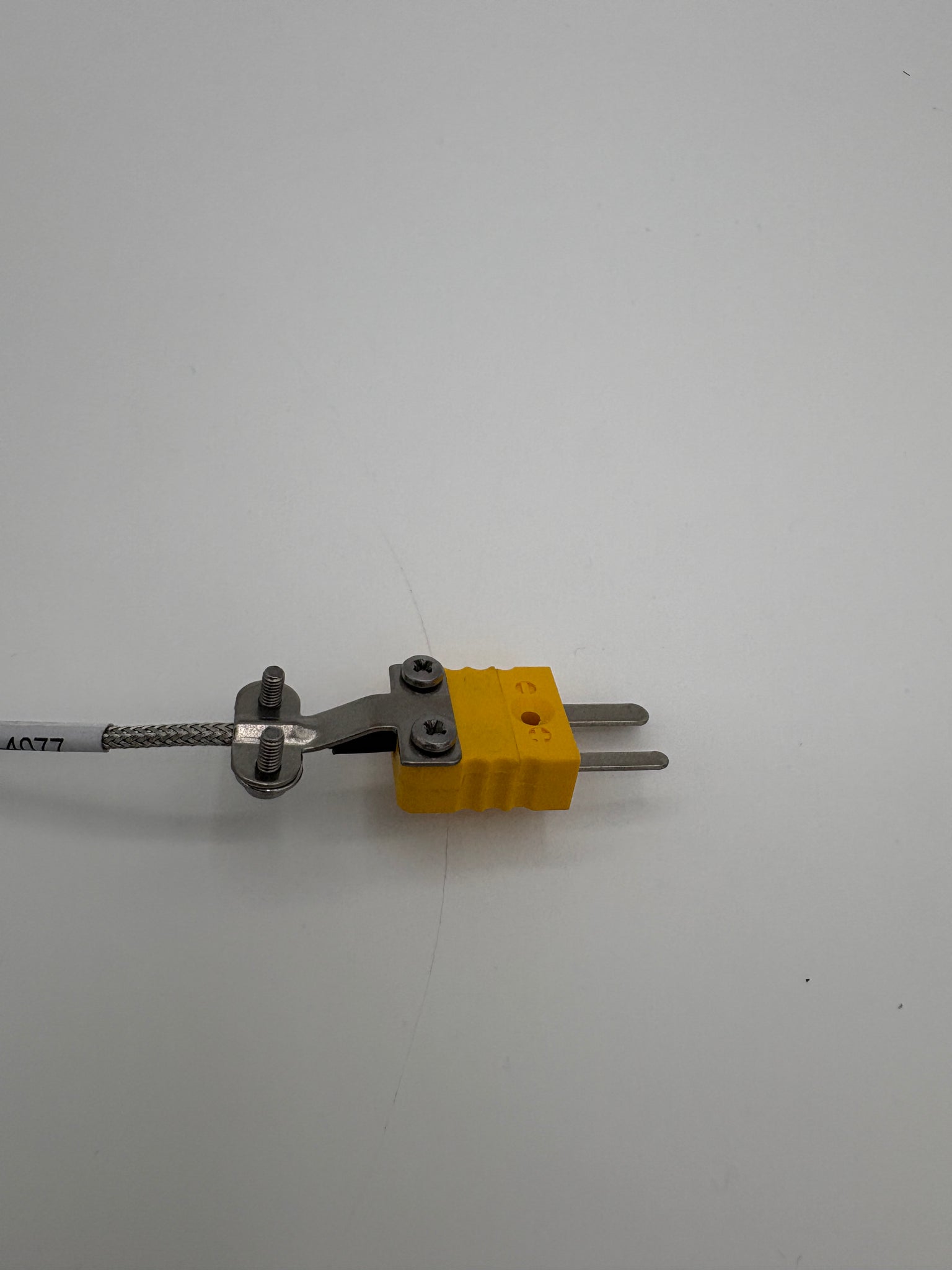

S7 Bean Temp Thermocouple with Yellow Spade Connector
Used On / Where is it located:
S7 Nighthawk
Discharge Door
Contents:
1 - S7 Bean Temp Thermocouple with Yellow Spade Connector

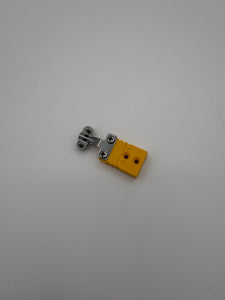

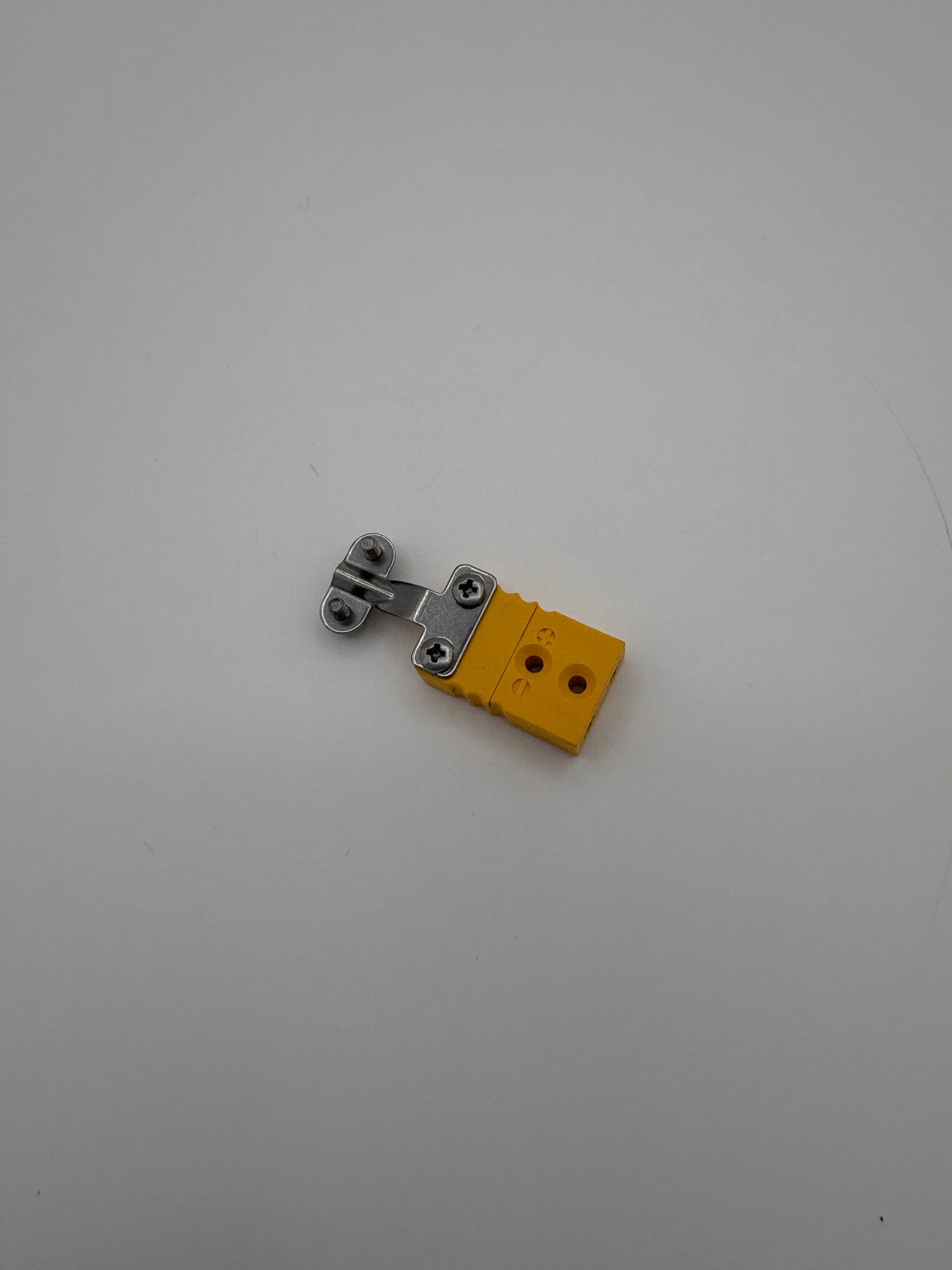

1 - Female adapter to convert the M12 harness to a spade connector
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage. Symptoms indicating replacement needed include damage resulting from improper removal or usage or inaccurate bean temperature readings.
Note:
A damaged thermocouple typically shows extreme temperature readings or a zero temperature. Improper positioning of the bean thermocouple can influence bean temperature readings without being damaged. Contact Loring support for instructions regarding proper positioning of the bean thermocouple.
