Part #
1012074
Description:
S70C Peregrine CMOD Hot Stack Dual Thermocouple
Used On / Where is it located:
S70C Peregrine

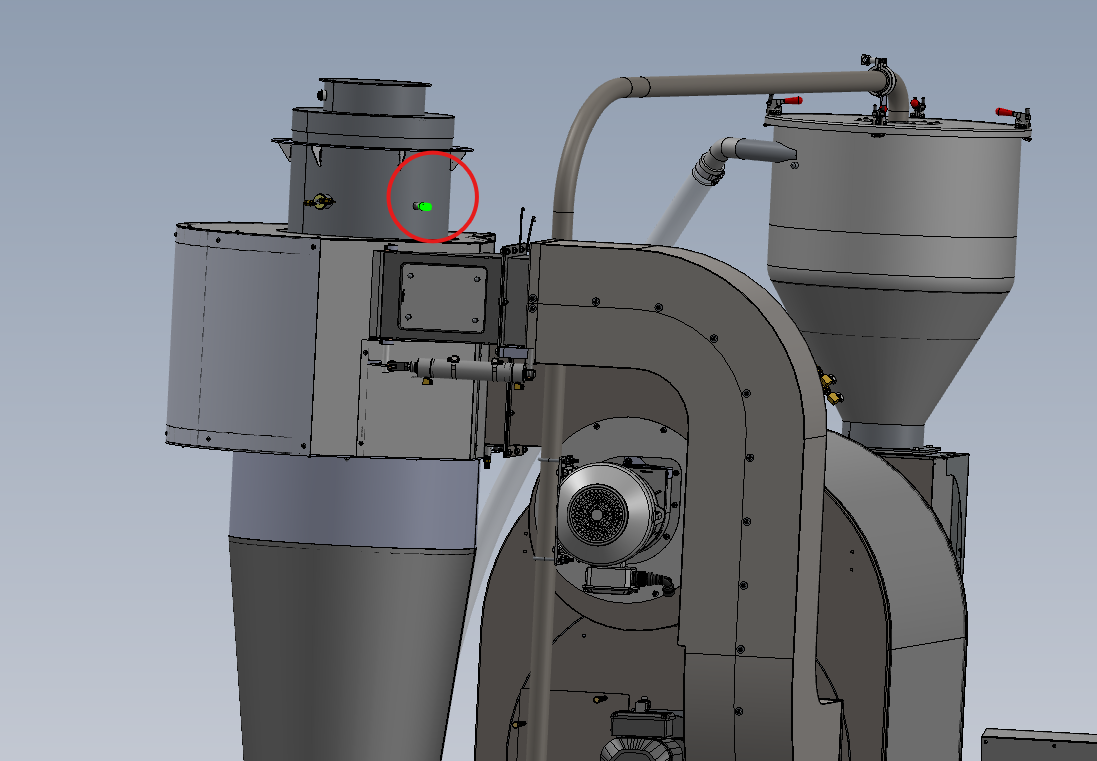

At the top of the cyclone, just below the stack hat
Contents:

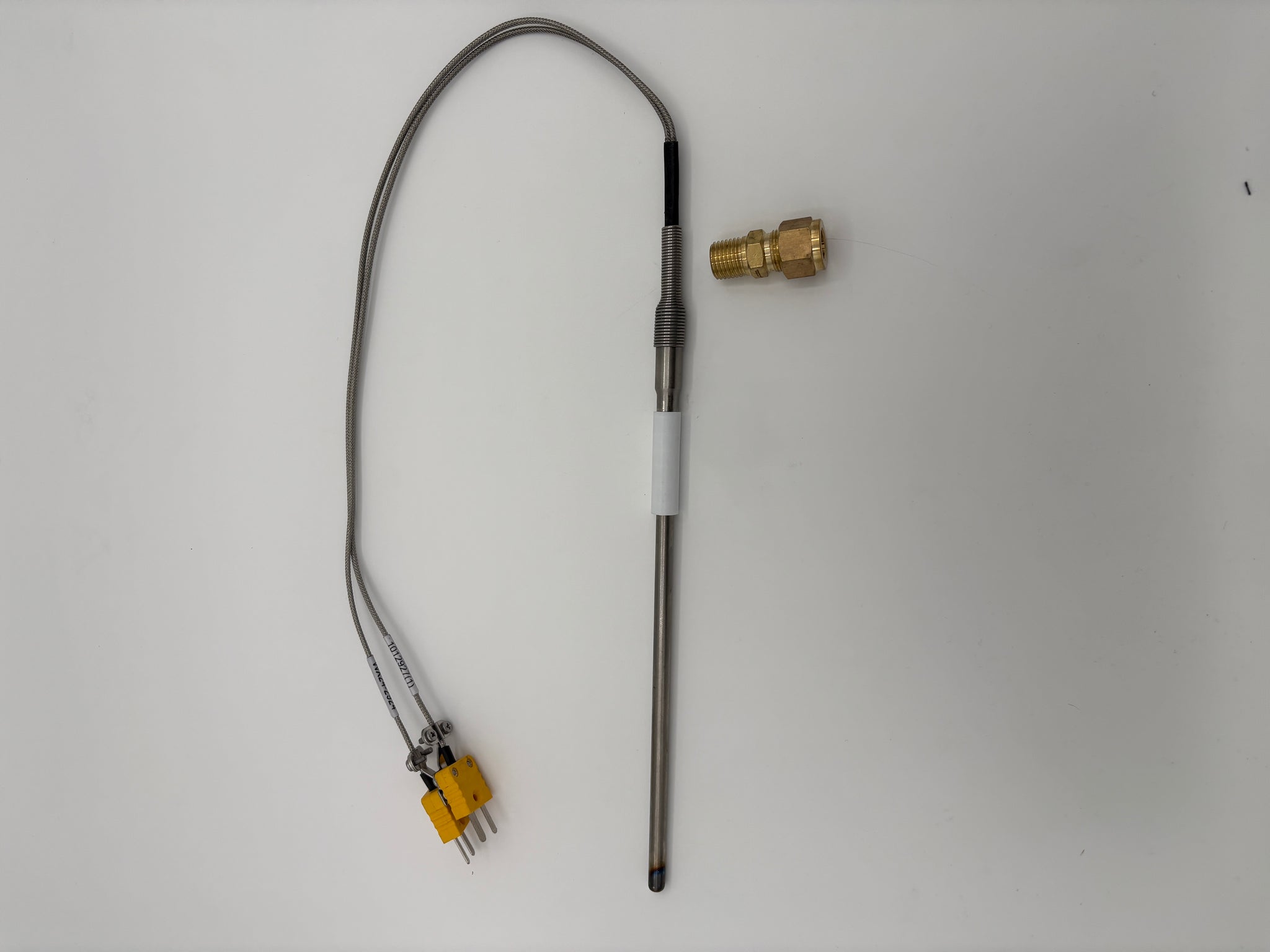

1 S70C Peregrine Hot Stack Dual Thermocouple
Parts Service Factor / Life Expectancy:
Life expectancy is dependent upon roaster usage. Symptoms indicating replacement needed include damage resulting from improper removal or usage or inaccurate temperature readings.
Note:
A damaged thermocouple typically shows extreme temperature readings or a zero temperature. Improper positioning of the thermocouple can influence temperature readings without being damaged. Contact Loring support for instructions regarding proper positioning of the thermocouple.
How to tell if your roaster is a CMOD or an A/BMOD
