Part #:
1009078
Description:
Kit includes replacement load cells and wiring harness for the C35 green bean cart. This kit does not include the battery or the scale head.
A replacement scale head part number is 1002225, can be found here.
A replacement battery part number is 1002227, can be found here.
Used On / Where is it located:
Loring C35 Green Bean Cart
The scale head and harness are located under the hopper of the C35 cart
Contents:

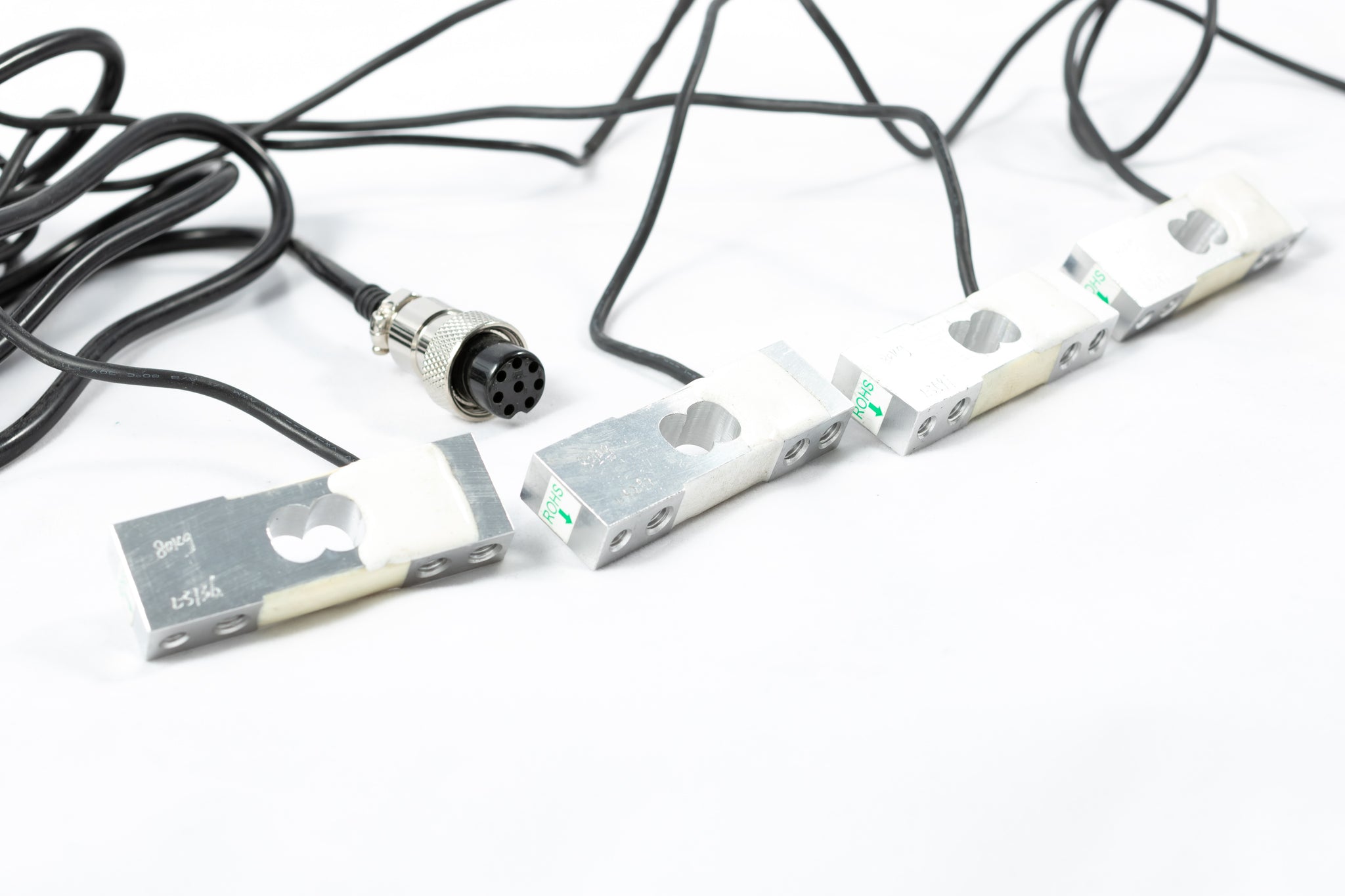

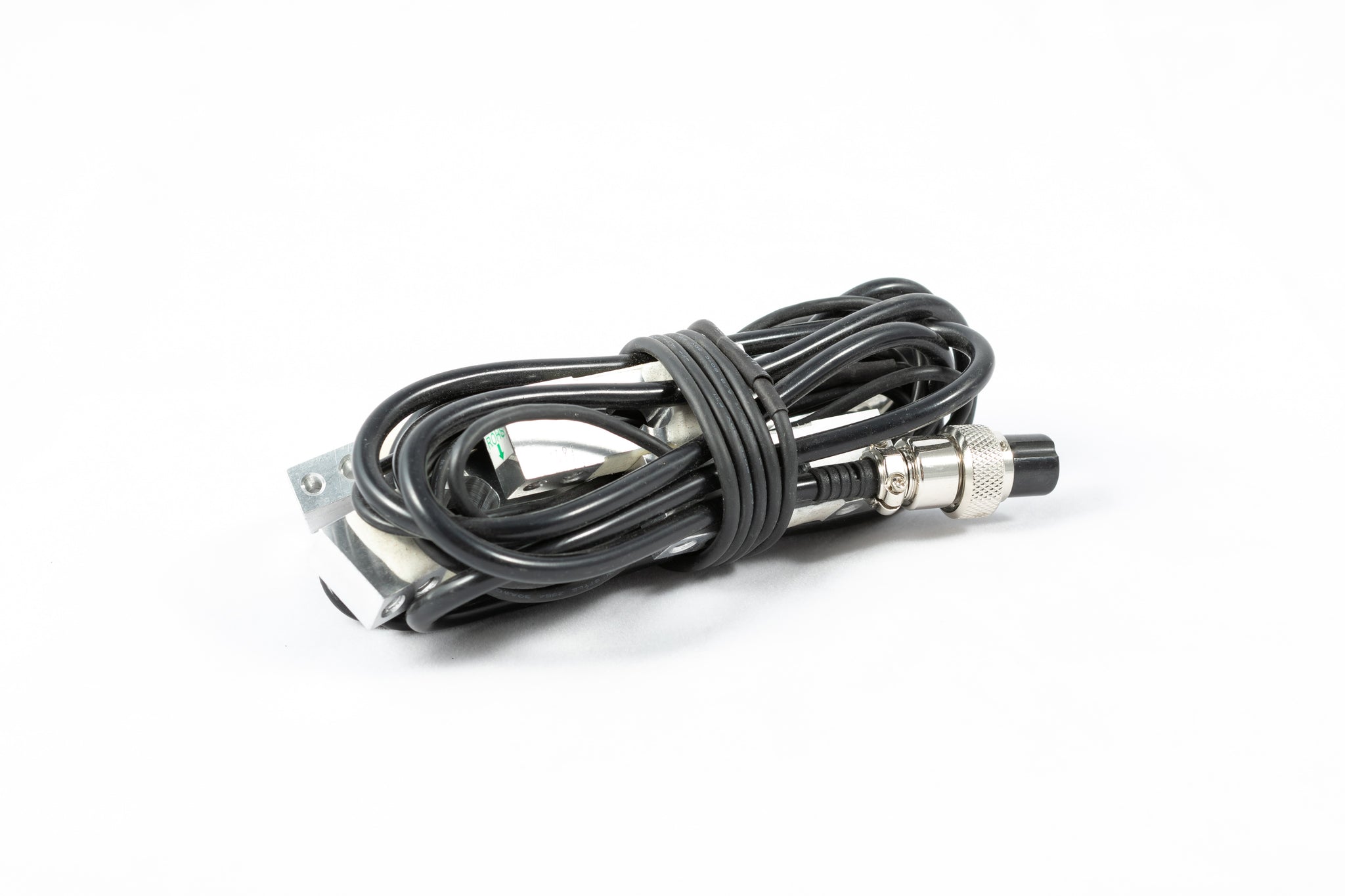

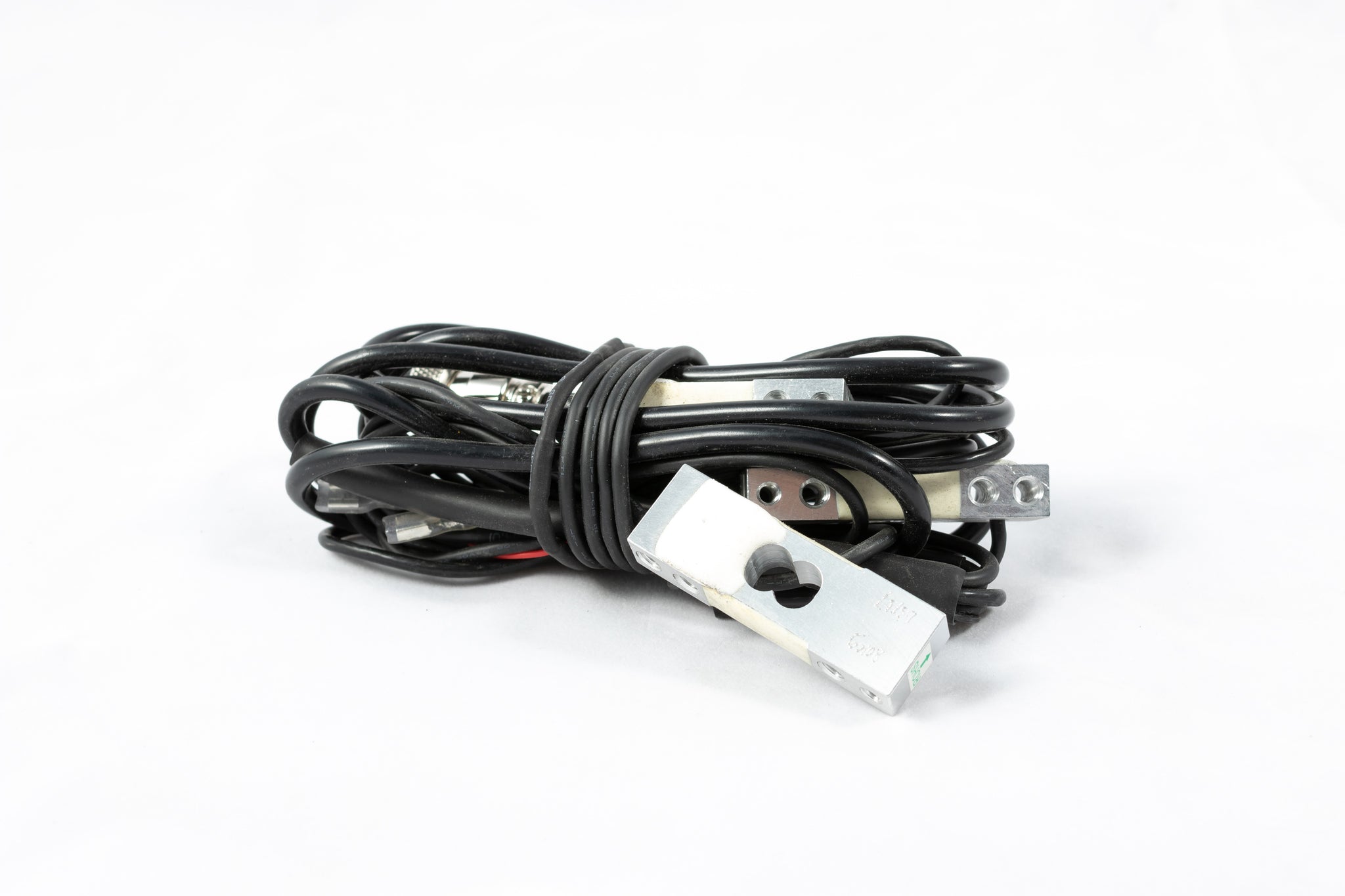

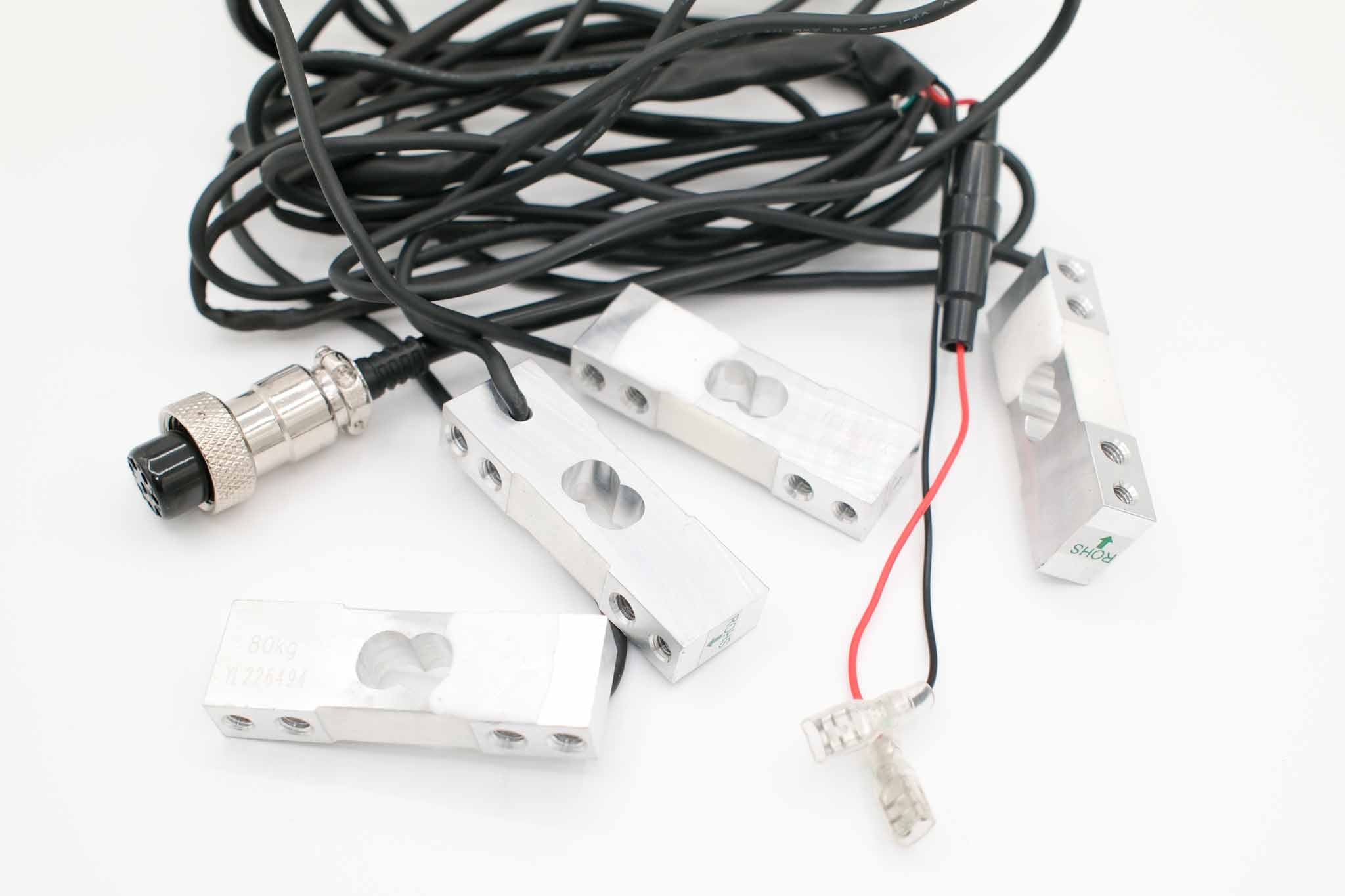

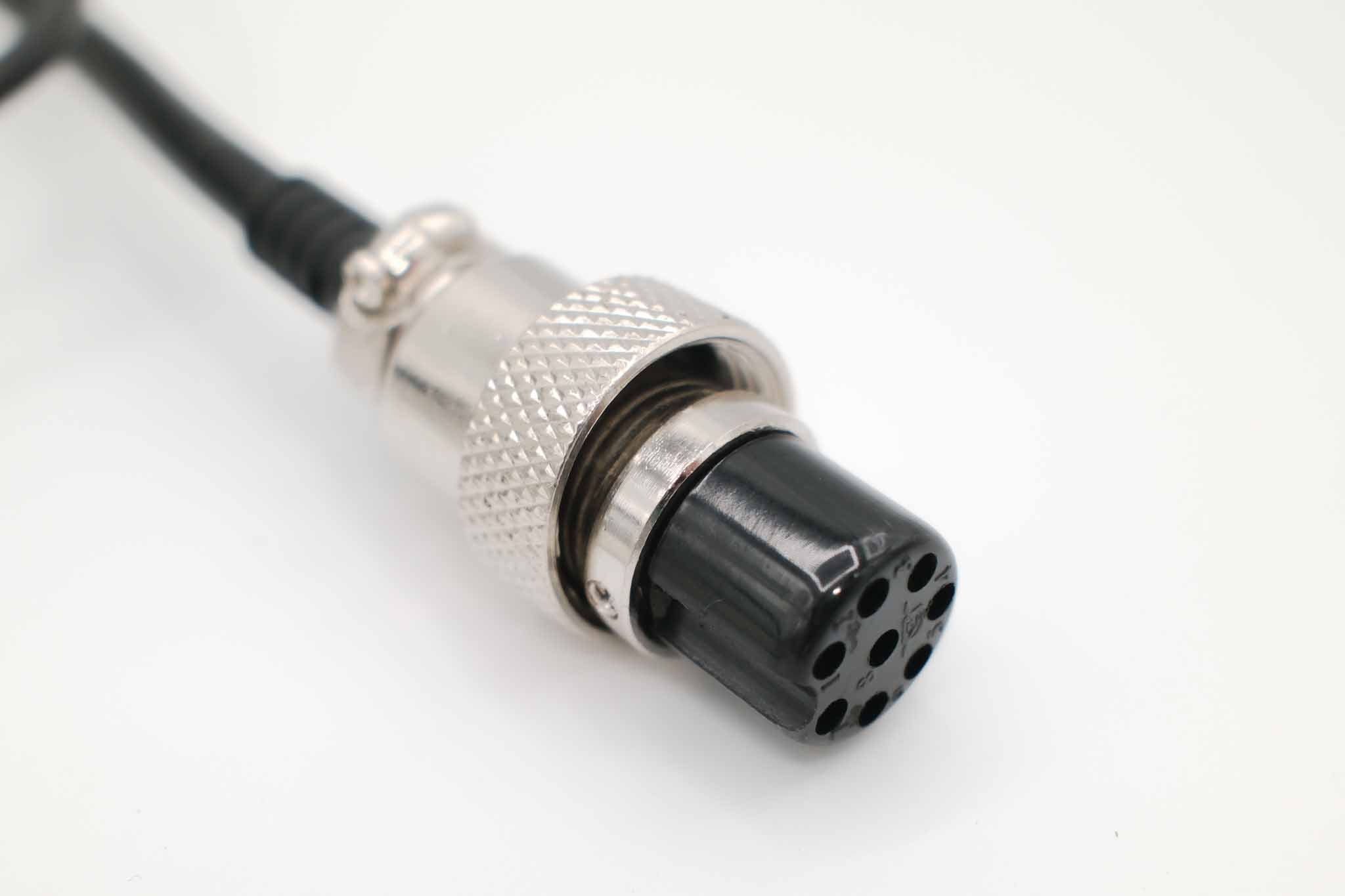

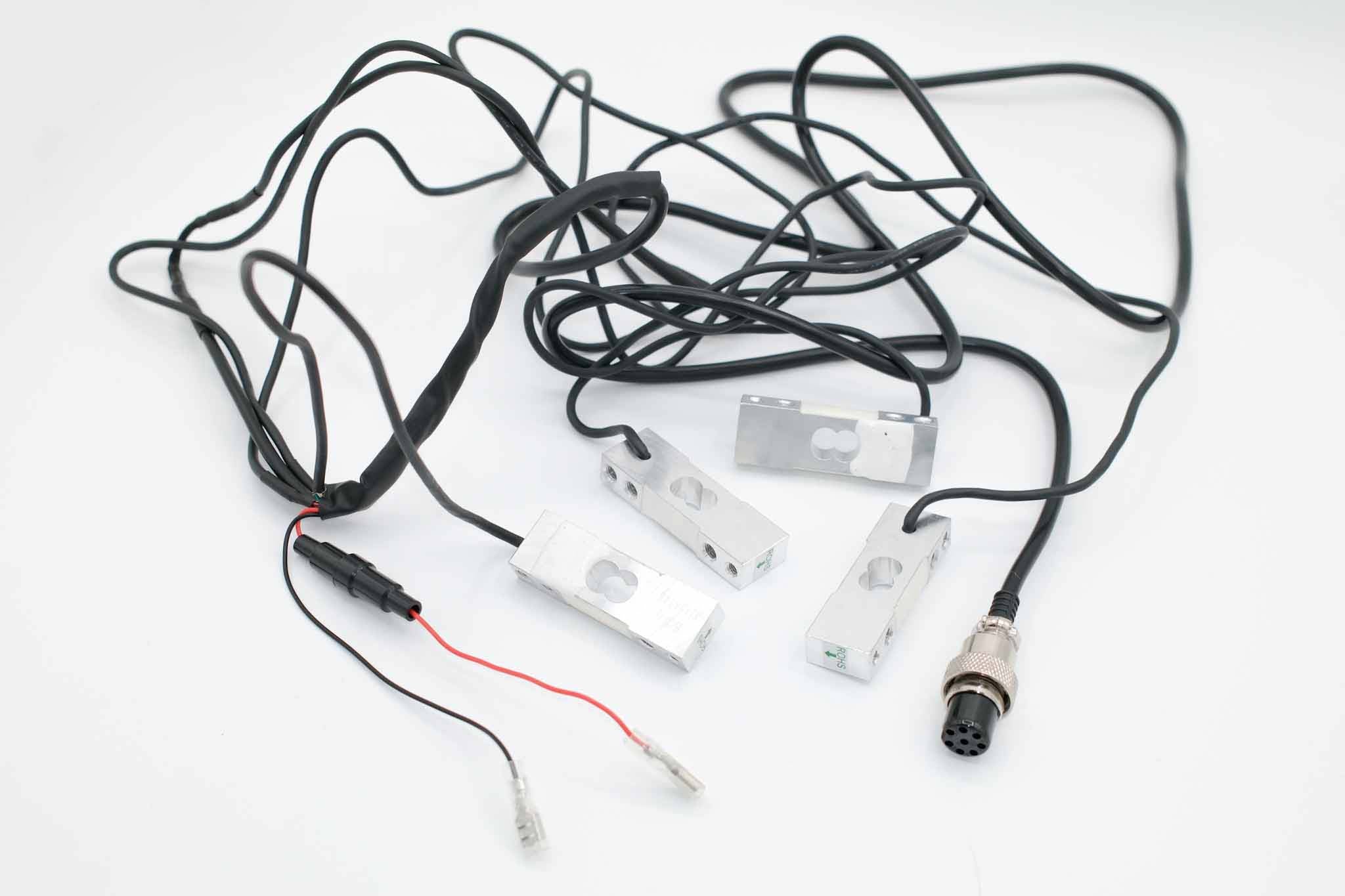

1 Harness with 4 attached load cells.
Parts Service Factor / Life Expectancy:
Life expectancy is approximately 5 years but is dependent upon roaster usage. Symptoms indicating replacement needed include the Scale head not turning on, the scale head does not show proper weight even after proper calibration, a flickering screen, or an error code on the screen.
Note: load cells will need to be calibrated to the scale head upon installation.
