Part #:
1008749
Description:
The S70 Green bean hopper air cylinder replacement kit comes with everything needed to replace the air cylinder in an S70 green bean hopper.
Used On / Where is it located:
The air cylinder is located in the green bean hopper of the S70 Peregrine A/B/C mod roasters.
Contents:

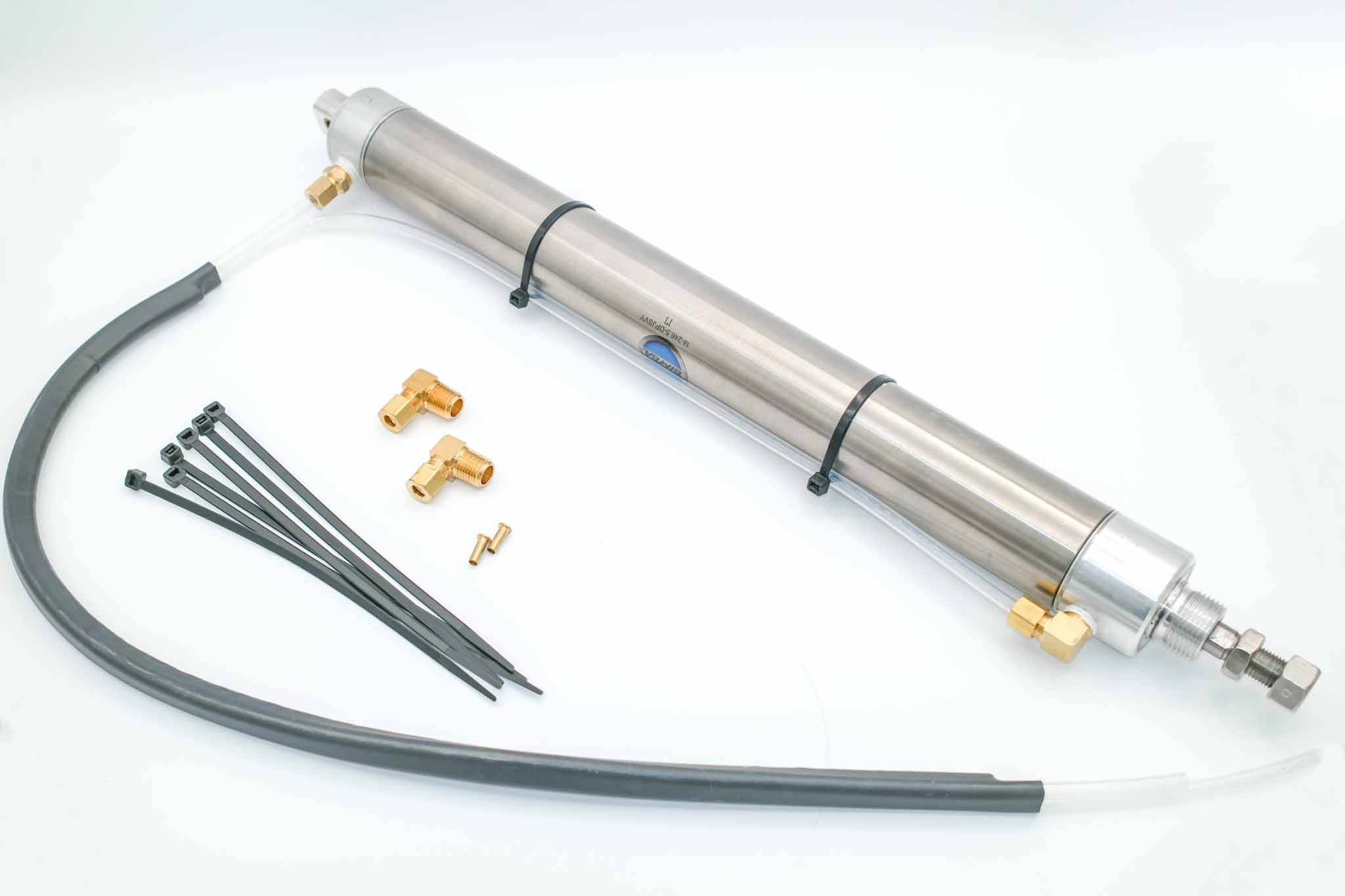

This kit includes the cylinder, air lines, and all associated hardware:

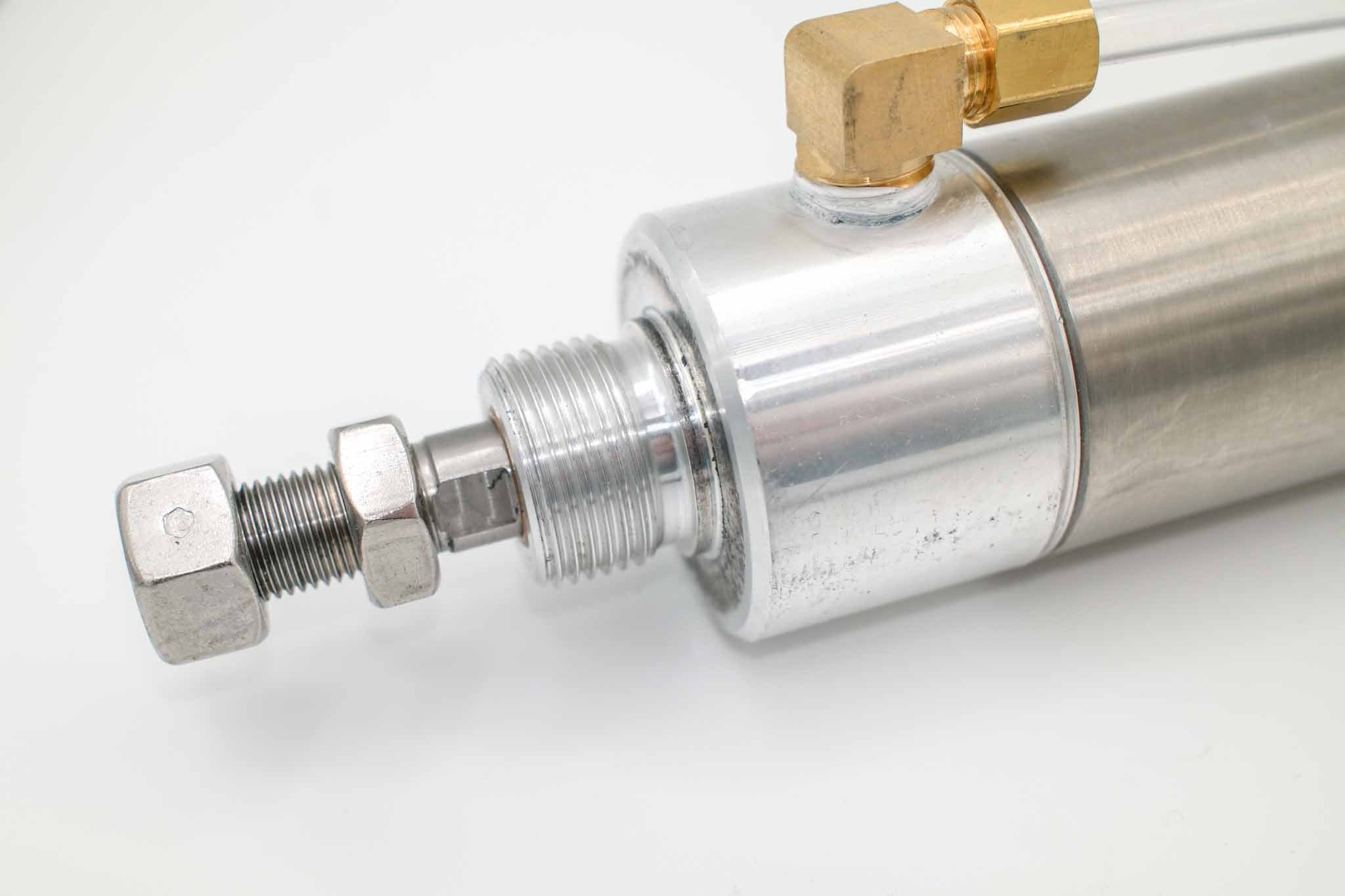

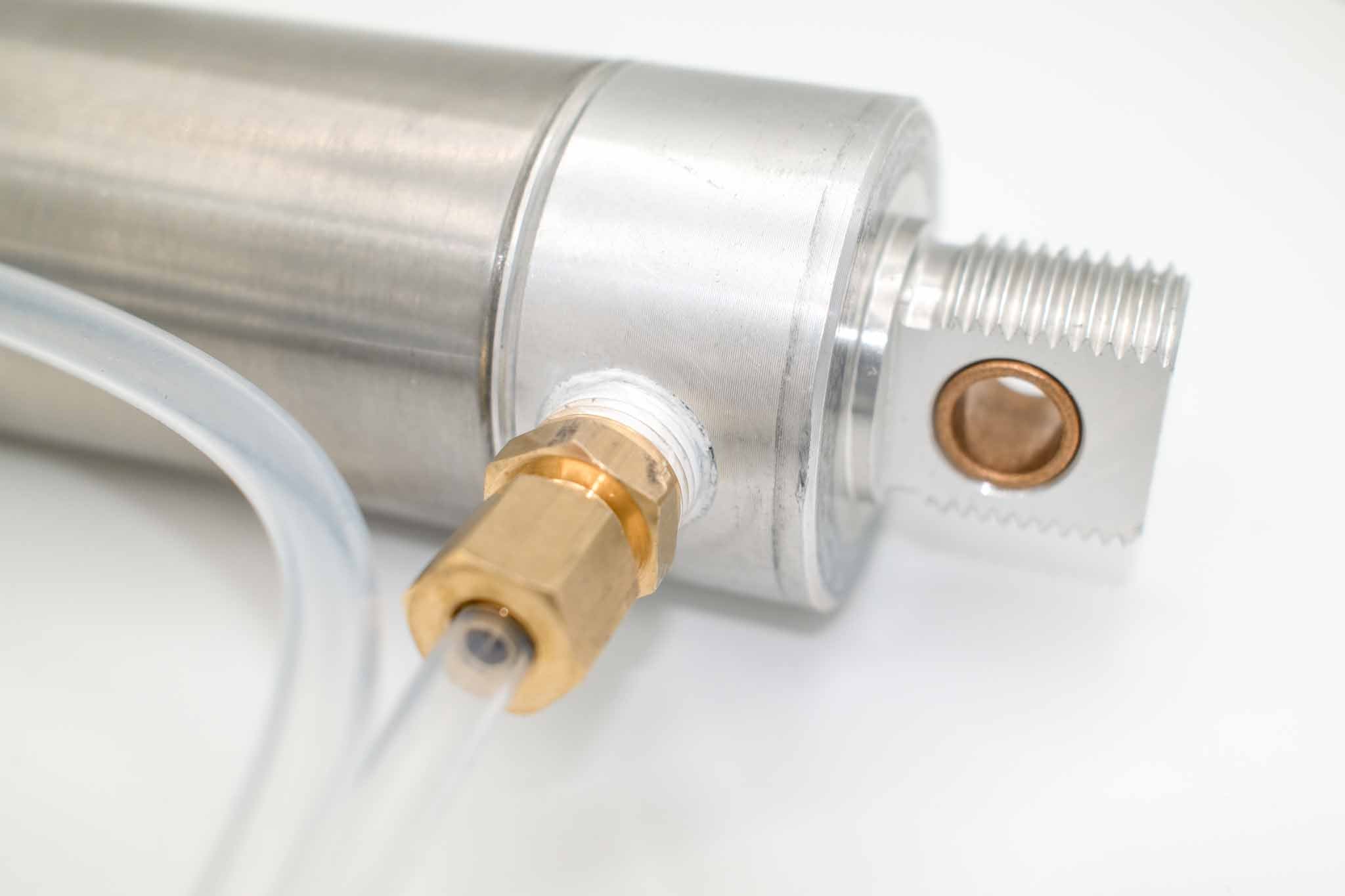

- 1 1-3/4", 6.5" stroke, dual-action air cylinder
- 23" 1/4" OD, 0.18" ID, 0.035" wall tubing
- 76" 1/4" OD, 3/16" ID, 1/32" wall Teflon tubing
- 3 1/4" brass elbows
- 1 1/2-20, center lock hex nut
- 1 1/2-20 jam nut
- 1 1/4" brass pipe adapter
- 8 cable ties
- 24" heat shrink tubing
Parts Service Factor / Life Expectancy:
Life expectancy is approximately 5 years, but it is dependent upon roaster usage. Symptoms indicating replacement needed are air leaks or poor pneumatic door ram performance.
