Part #:
1009092
Description:
Double Acting Purge Gate Retro Fit Kit for older A/B mod S15 and S35 roasters with a single-action ram
Used On / Where is it located:
S15 Falcon
S35 Kestrel
The ram is on the back of the roster and connects to the purge gate

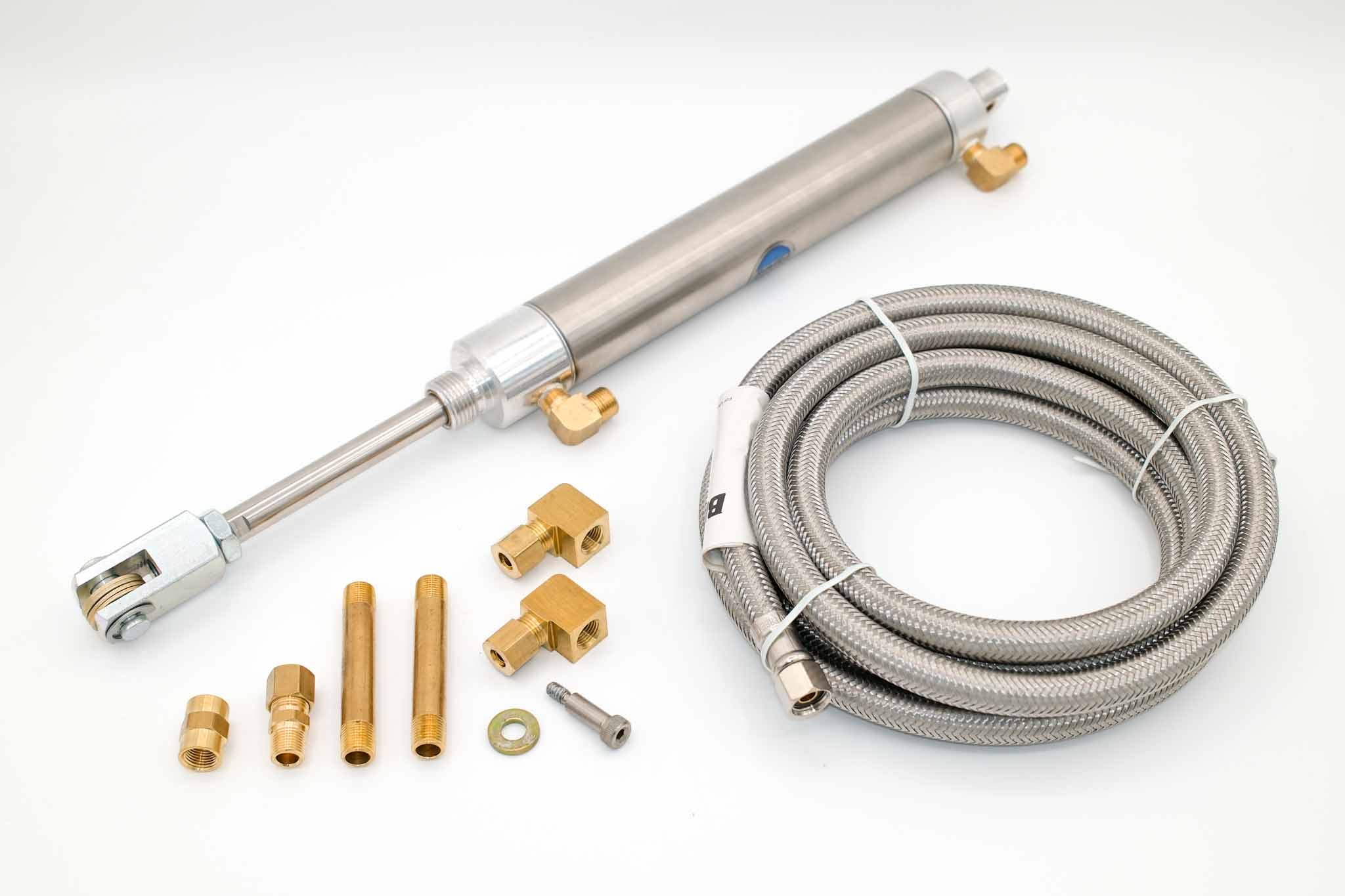

Kit includes:

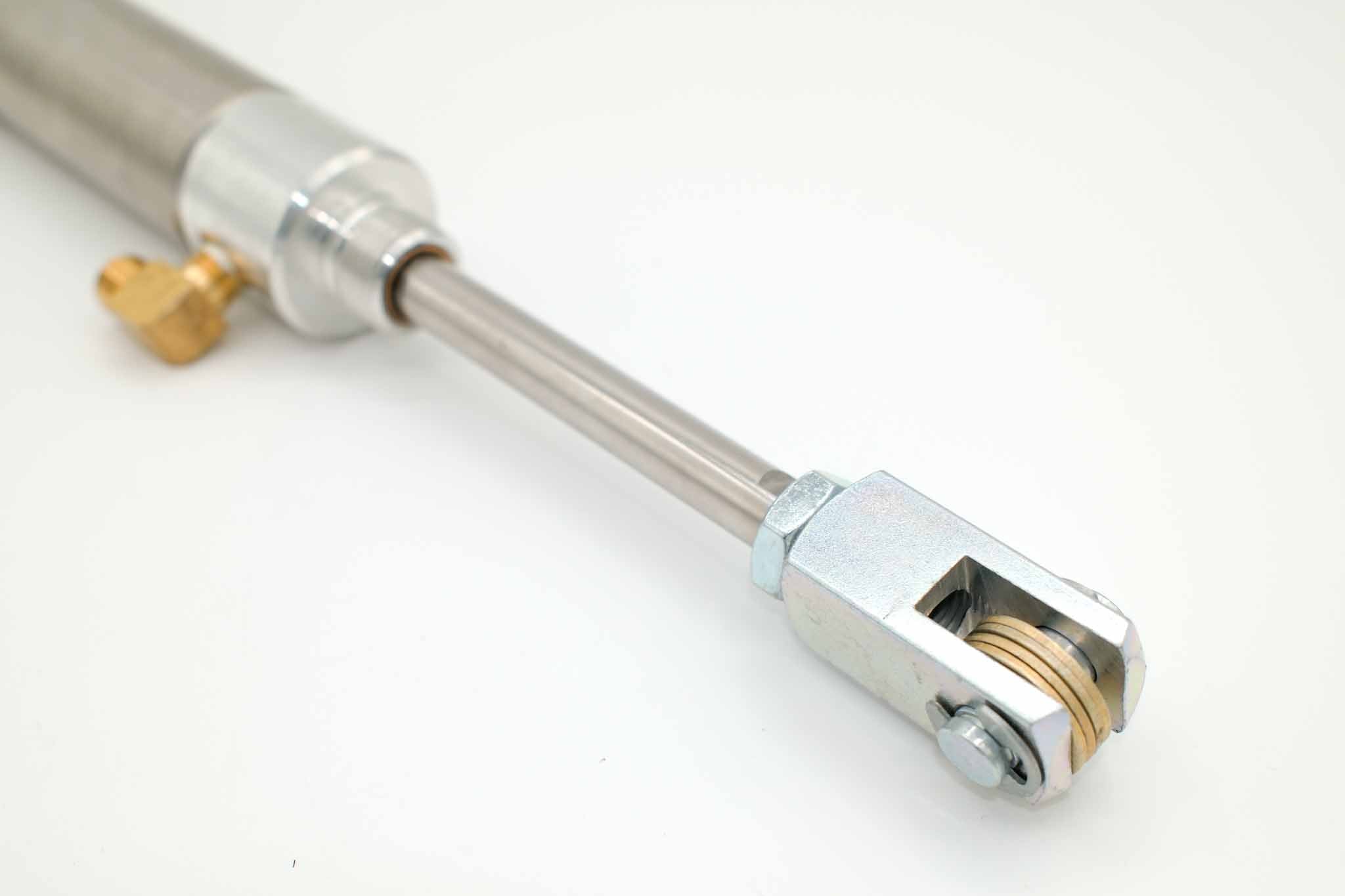

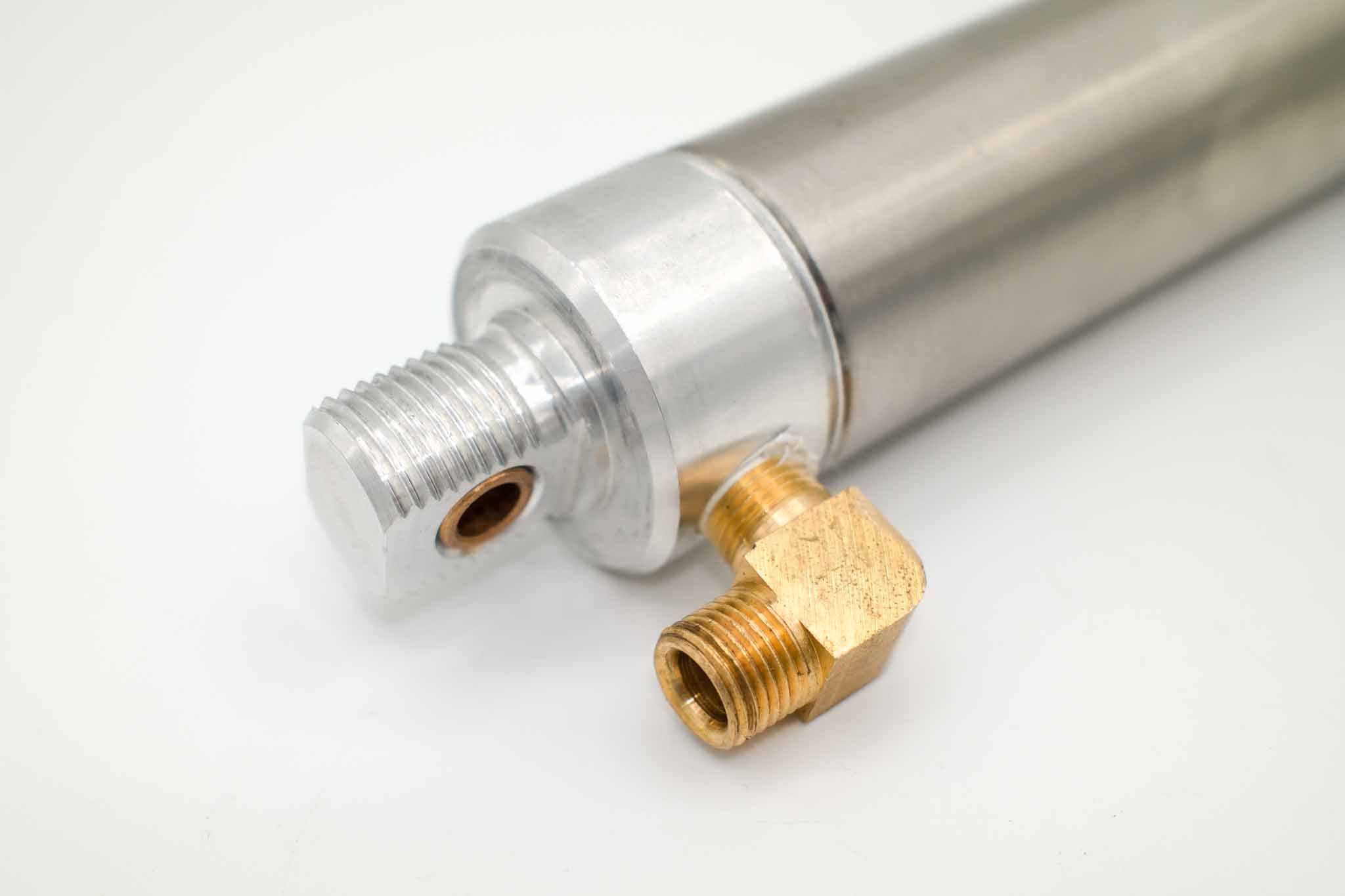

1 double-acting air cylinder and the required hardware to adapt a single-action ram to a double-action ram
Parts Service Factor / Life Expectancy:
Life expectancy is approximately 5 years, but is dependent upon roaster usage. Symptoms indicating replacement needed are air leaks or poor pneumatic door ram performance.
